Schneider Electric

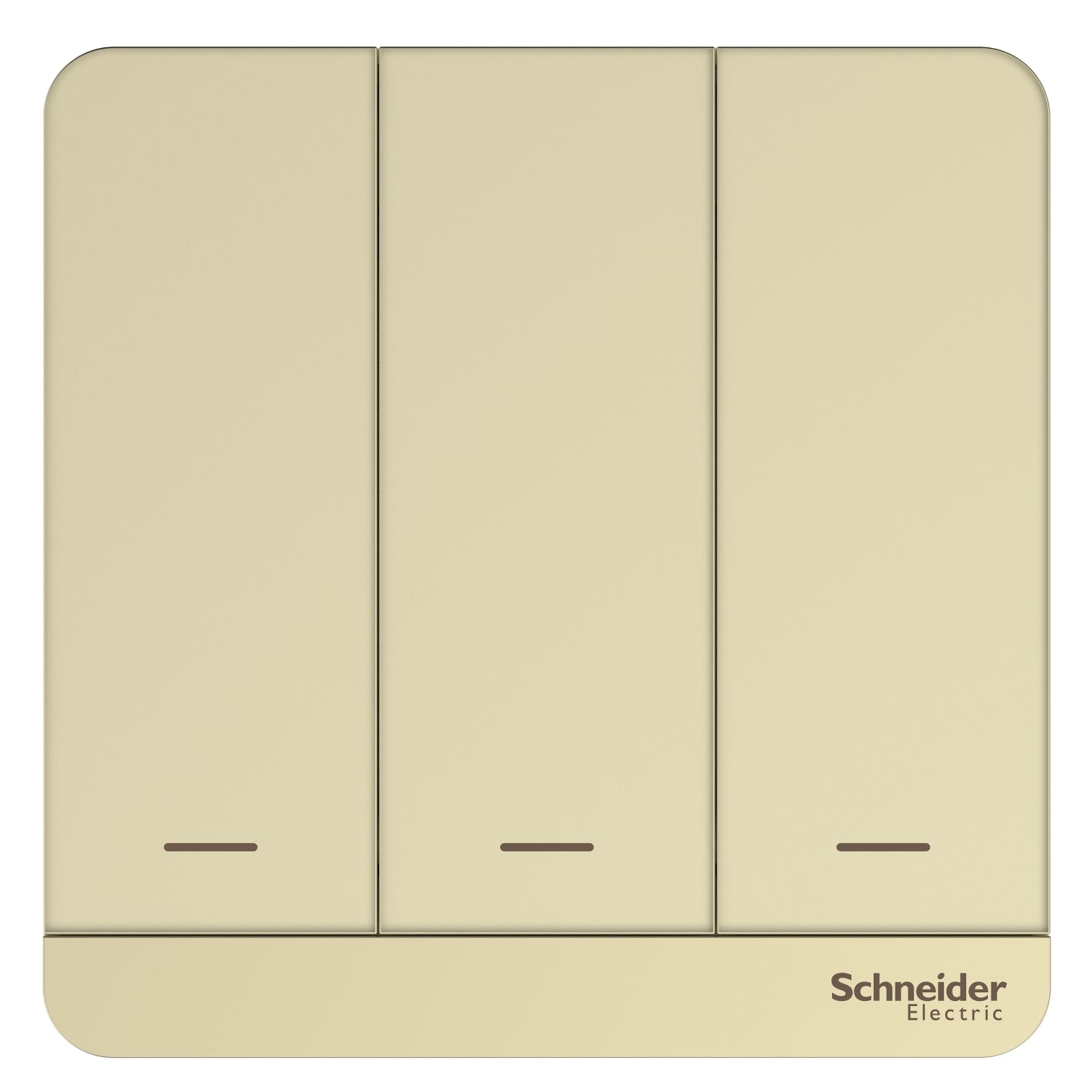

Wiser AvatarOn 3-Gang Light Switch Wine Gold

Wiser AvatarOn 3-Gang Light Switch Wine Gold

Regular price $178.63 SGD
Regular price Sale price $178.63 SGD
Sale Sold out
Description

Wiser AvatarOn 3-Gang light switch is a certified Zigbee 3.0 and green premium electronic touch switch. Its unique and fashionable design is patented and exquisitely manufactured with an acrylic glass cover for a high gloss finish and excellent scratch resistance.

It can be wired in a 3-wire configuration (live, neutral, load) to appliances such as lights and fans to provide both tactile and digital control.

It has a signalling LED that glows with a soft luminescence in the dark. The LED can be adjusted to white or blue with varying brightness and configured to be on when the load is on or off.

Specifications

  • Color: Wine Gold
  • Load types: Incandescent lamp, Halogen lamp, Fluorescent lamp, LED lamp, fans
  • Rated operational voltage: 200...240 V AC 50/60 Hz 4.04 A / 100...120 V AC 50/60 Hz 4.44 A
  • Rated power: 800 W
  • Number of gangs: 3 gangs
  • Local signalling: Status indication LED (white/blue), Programmable LED (green/red/orange)
  • Communication network type: ZigBee IEEE 802.15.4 (2.4 GHz) at 20 m
  • Connection terminals: Brass terminal, 1...2.5 mm² (AWG 18...AWG 13) solid, Brass terminal, 1 x 2.5 mm², Brass terminal, 2 x 1.5 mm²
  • Dimensions: 86mm(width), 86mm(height), 38mm(depth), 28mm (embedded depth)
  • Standards: EN 60669-2-5, IEC 60669-2-5, CE
  • Product certifications: Zigbee 3.0
  • Ambient air temperature for operation: -10…45 °C
  • Relative humidity: 10…95%
  • IP degree of protection: IP20
  • Operating altitude: <= 2000 m
  • Environmental characteristic: Indoor Use

Warranty

2 years carry-in one on one replacement
