Schneider Electric

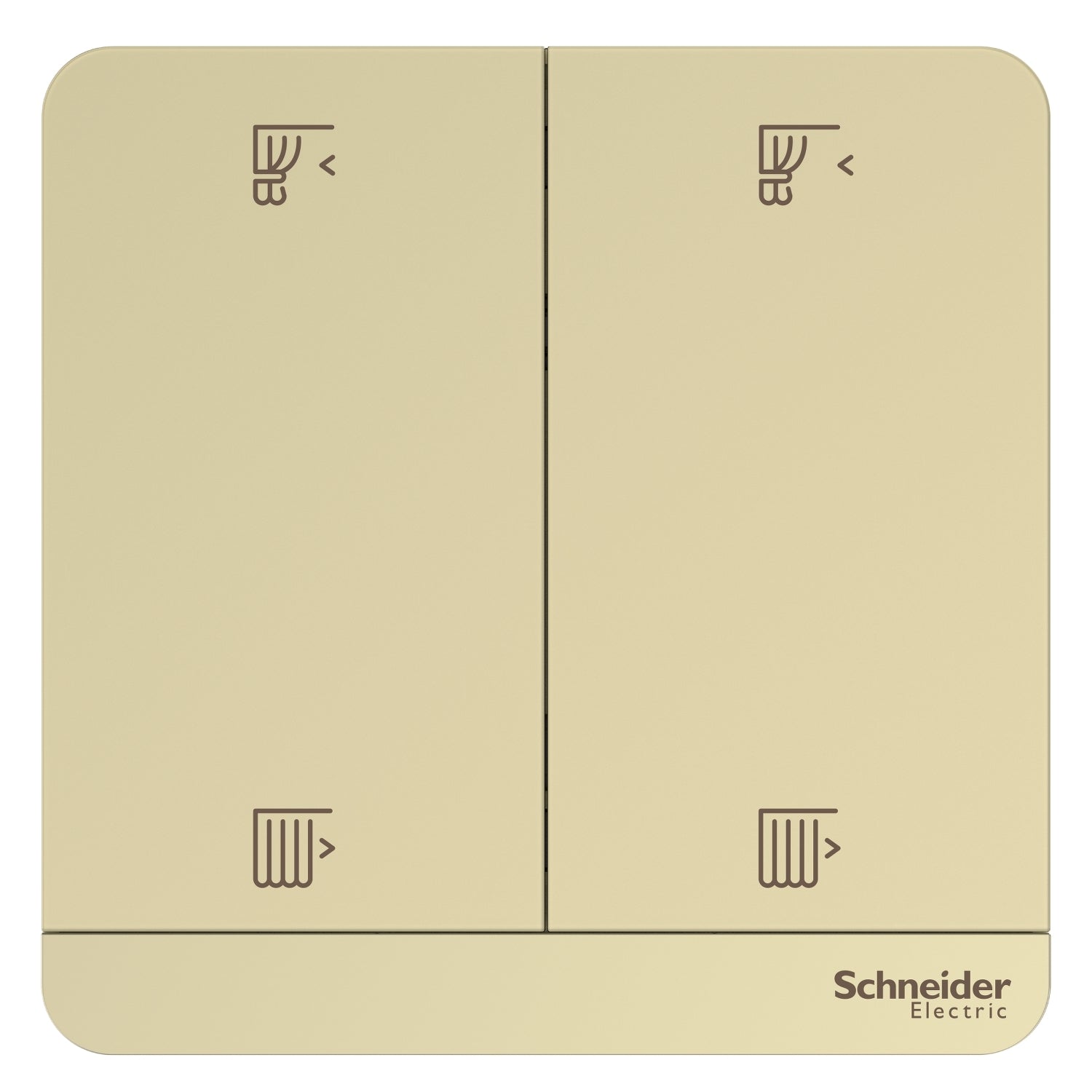

Wiser AvatarOn 2-Gang Shutter Switch Wine Gold

Wiser AvatarOn 2-Gang Shutter Switch Wine Gold

Regular price $209.20 SGD
Regular price Sale price $209.20 SGD
Sale Sold out
Tax included.
Description

Wiser AvatarOn 2-Gang shutter switch is a certified Zigbee 3.0 and green premium electronic touch switch capable of efficient pulse motor control. Its unique and fashionable design is patented and exquisitely manufactured with an acrylic glass cover for a high gloss finish and excellent scratch resistance.

It can be wired to AC or DC drive motors to provide both tactile and digital control of curtains and blinds, supporting open, stop and close functions.

It has signalling LEDs that glows with a soft luminescence in the dark. The LED can be adjusted to white or blue with varying brightness and configured to be on when the load is on or off.

Specifications

  • Color: Wine Gold
  • Load type: Motorised devices
  • Rated operational voltage: 200...240 V AC, 100...120 V AC, 48 V DC
  • Rated power: 300 W, 150 W, 70 W
  • Number of gangs: 2 gangs
  • Local signalling: Status indication LED (white/blue), Programmable LED (green/red/orange)
  • Communication network type: ZigBee IEEE 802.15.4 (2.4 GHz)
  • Connection terminals: Brass terminal, 1...2.5 mm² (AWG 18...AWG 13) solid, Brass terminal, 1 x 2.5 mm², Brass terminal, 2 x 1.5 mm², Terminal block, 0.5...1.5 mm² (AWG 28...AWG 14) solid, Terminal block, 1 x 1.5 mm²
  • Dimensions: 86mm(width), 86mm(height), 38mm(depth), 28mm (embedded depth)
  • Standards: EN 60669-2-5, IEC 60669-2-5, CE
  • Product certifications: Zigbee 3.0
  • Ambient air temperature for operation: -10…45 °C
  • Relative humidity: 10…95%
  • IP degree of protection: IP20
  • Operating altitude: <= 2000 m
  • Environmental characteristic: Indoor Use

Warranty

2 years carry-in one on one replacement
