Schneider Electric

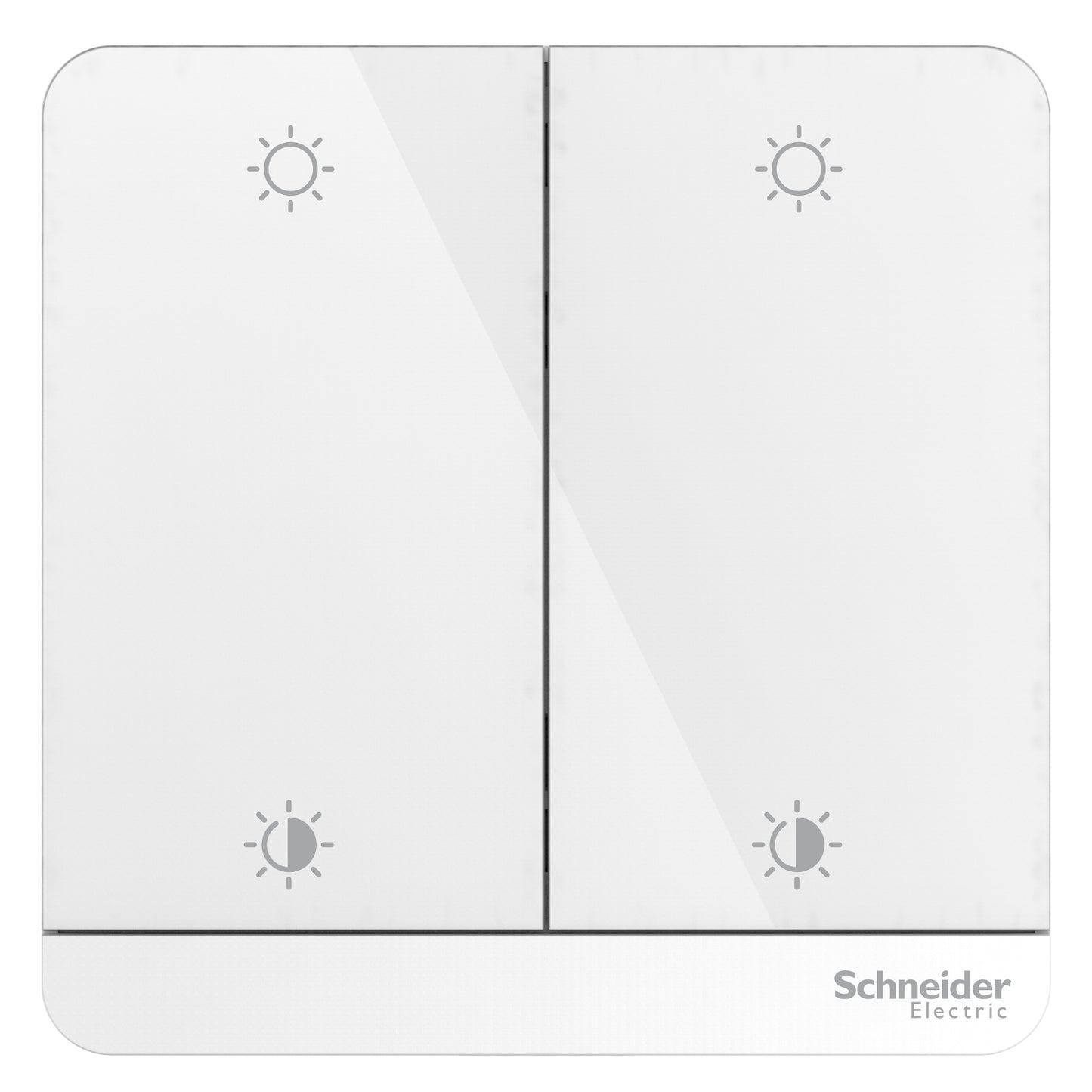

Wiser AvatarOn 2-Gang Dimmer Switch White

Wiser AvatarOn 2-Gang Dimmer Switch White

Regular price $199.00 SGD
Regular price $254.88 SGD Sale price $199.00 SGD
Sale Sold out
Tax included.
Description

Wiser AvatarOn 2-Gang dimmer switch is a certified Zigbee 3.0 and green premium electronic touch dimmer. Its unique and fashionable design is patented and exquisitely manufactured with an acrylic glass cover for a high gloss finish and excellent scratch resistance.

It can be wired in a 3-wire configuration (live, neutral, load) to leading or trailing dimmable lights to provide both tactile and digital control.

It has dimming icons that glows with a soft luminescence in the dark. The LED can be adjusted to white or blue with varying brightness and configured to be on when the load is on or off.

Specifications

  • Color: White
  • Load types: Leading or trailing edge dimmable lamps (See instructions for details)
  • Rated operational voltage: 100...240 V AC 50/60 Hz
  • Number of gangs: 2 gangs
  • Local signalling: Indicator LED (white/blue), Programming indication LED (green/red/orange)
  • Communication network type: ZigBee IEEE 802.15.4 (2.4 GHz) at 20 m
  • Connection terminals: Brass terminal, 1...2.5 mm² (AWG 18...AWG 13) solid, Brass terminal, 1 x 2.5 mm²
  • Dimensions: 86mm(width), 86mm(height), 38mm(depth), 35mm (embedded depth)
  • Standards: IEC 60669-2-5, IEC 60669-1, CE
  • Product certifications: Zigbee 3.0
  • Ambient air temperature for operation: -10…45 °C
  • Relative humidity: 10…95%
  • IP degree of protection: IP20
  • Operating altitude: <= 2000 m
  • Environmental characteristic: Indoor Use

Warranty

2 years carry-in one on one replacement
