Schneider Electric

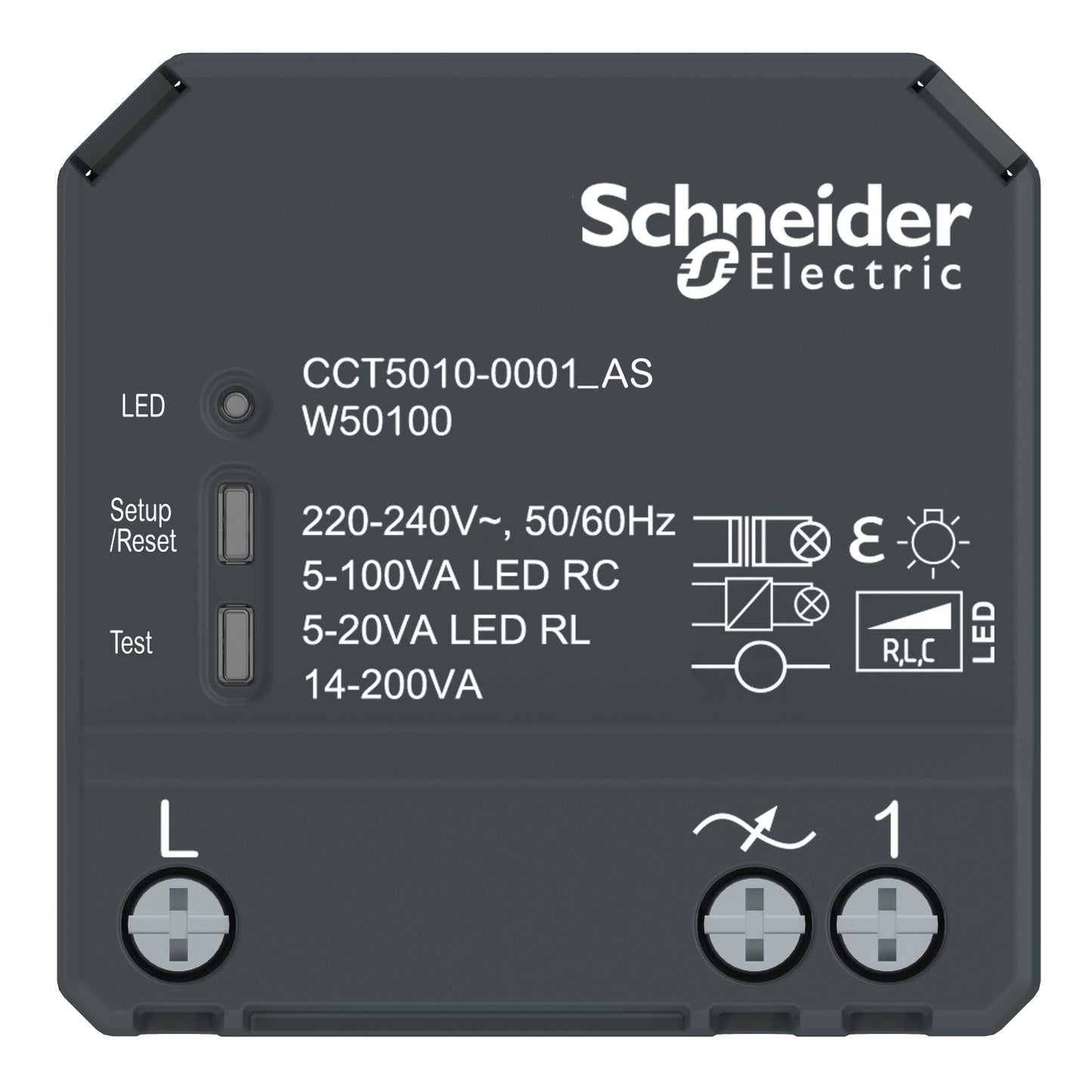

Wiser 1-Gang Micro Module Dimmer

Wiser 1-Gang Micro Module Dimmer

$208.01 SGD
$208.01 SGD
Sale Sold out
Tax included.
Description

Wiser 1-Gang Micro Module Dimmer can replace or convert a conventional switch to a connected dimmer. It can be installed in a standard wall box and connected to ohmic, inductive or capacitive loads. The module is actuated through the Wiser by SE app or connected mechanical switch. Up to 10 auxiliary mechanical push buttons can be connected.

It supports a 2-wire installation (live, load) to dim multiple load types such as incandescent, halogen, fluorescent lamps or LED lamps.

Specifications

  • Color: Dark grey
  • Load types: Incandescent lamp, Halogen lamp, Fluorescent lamp, LED lamp.
  • Dimmer type: Universal
  • Rated operational voltage: 200...240 V AC 50/60 Hz
  • Standby consumption: < 0.4 W
  • Protection type: Overheating, short circuit, automatic overload
  • Local signalling: Programming indication:LED (green, orange and red)
  • Communication network type: ZigBee IEEE 802.15.4 (2.4 GHz), 2.5 mW at < 50m
  • Maximum 10 auxiliary push-buttons
  • Wiring configuration: Without neutral
  • Dimensions: 19mm (embedding depth), 43mm(width), 43mm(height)
  • Standards: EN 60669-2-5, IEC 60669-2-5, CE
  • Ambient air temperature for operation: 0…35 °C
  • IP degree of protection: IP20
  • Operating altitude: <= 2000 m
  • Environmental characteristic: Indoor Use

Warranty

2 years carry-in one on one replacement
