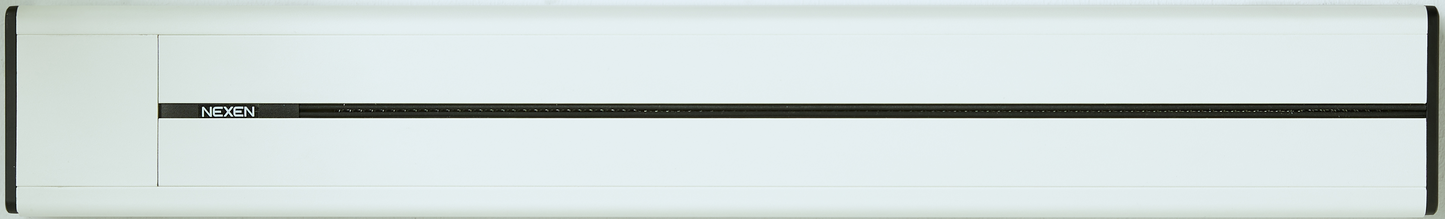

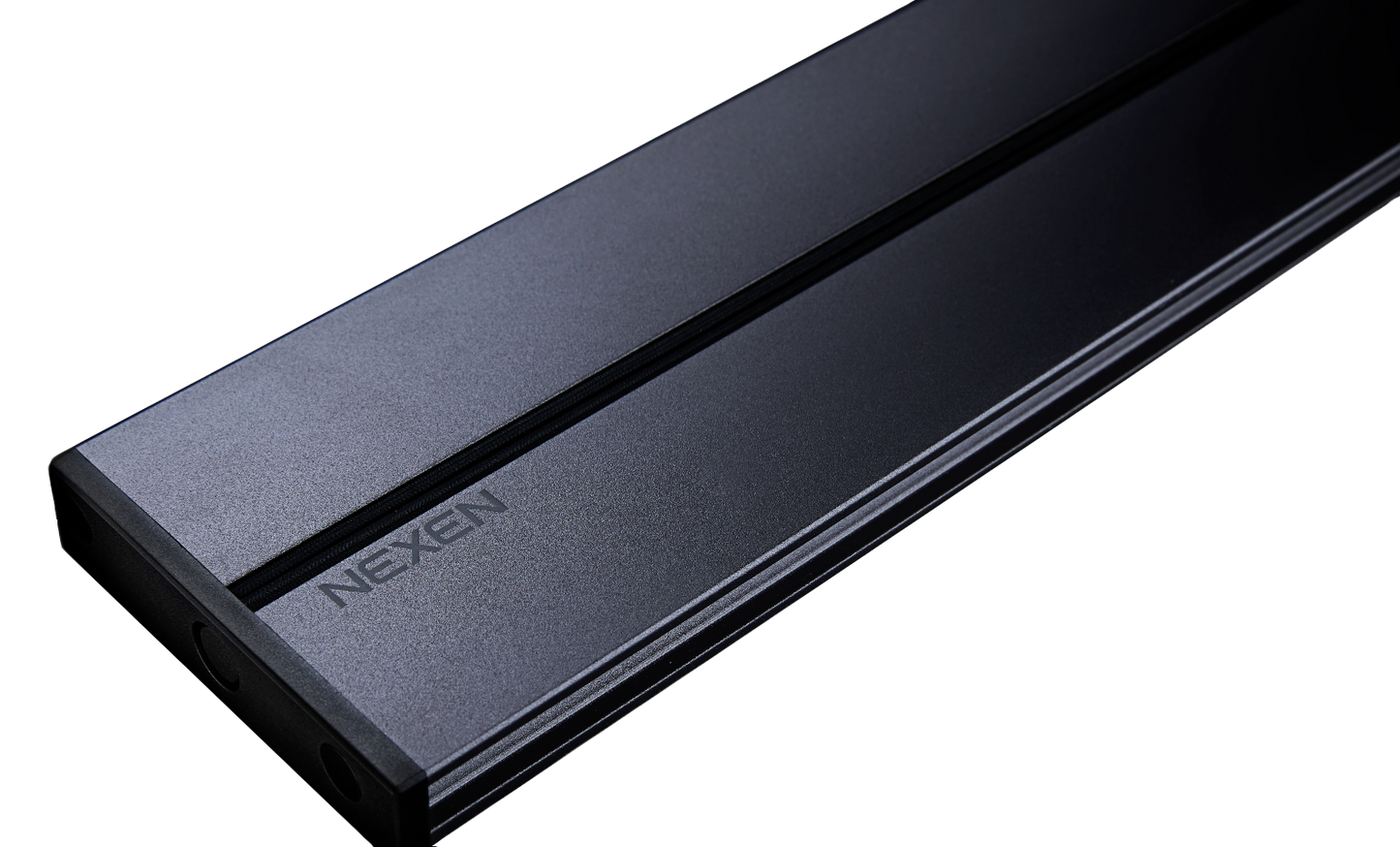

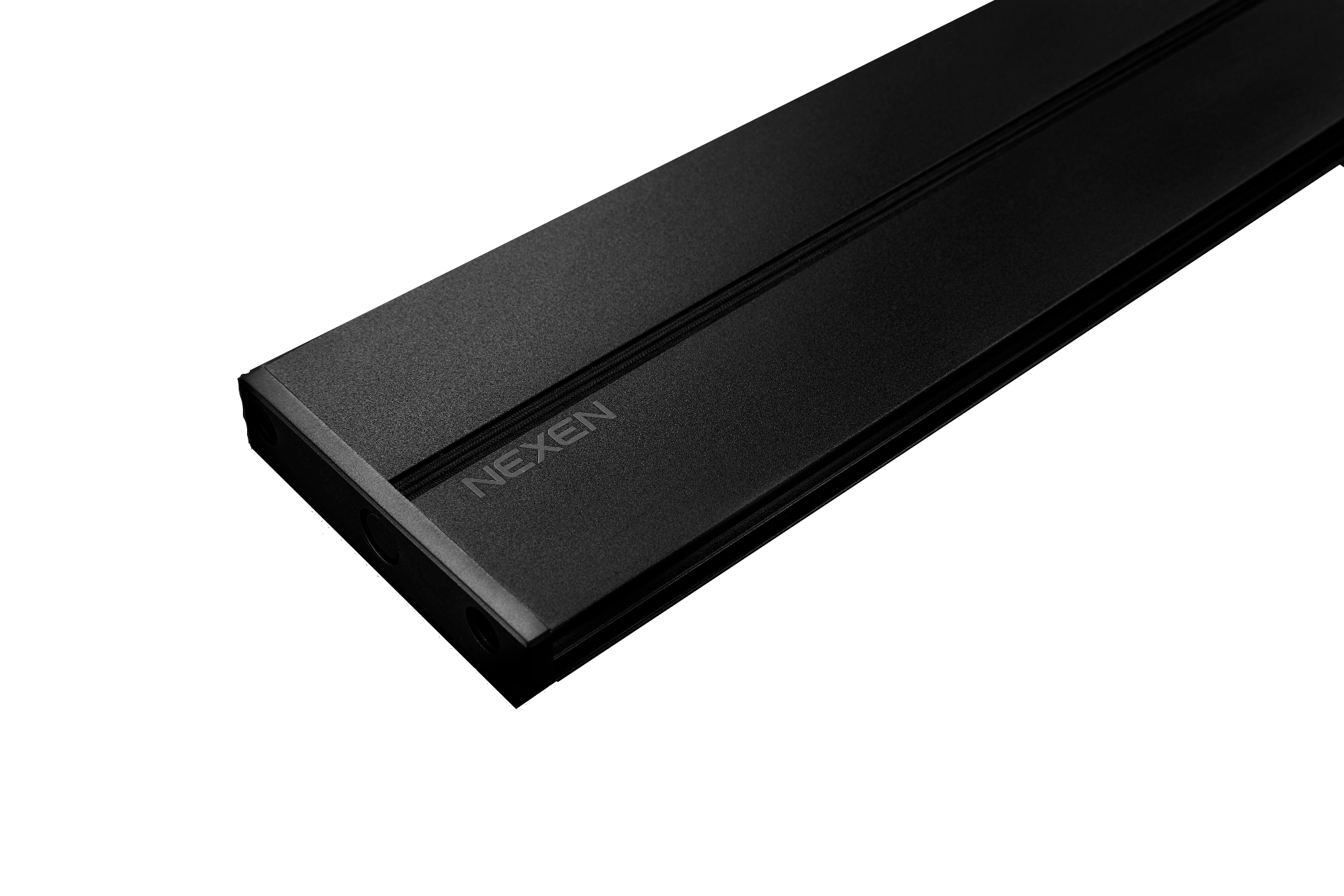

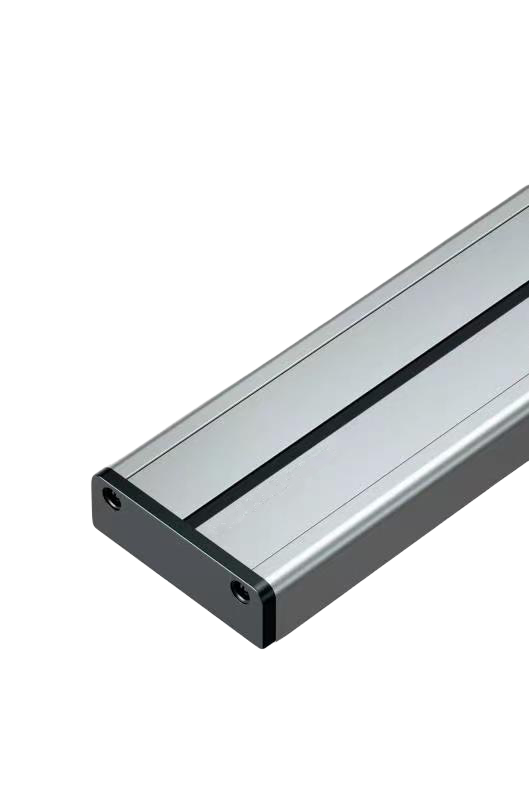

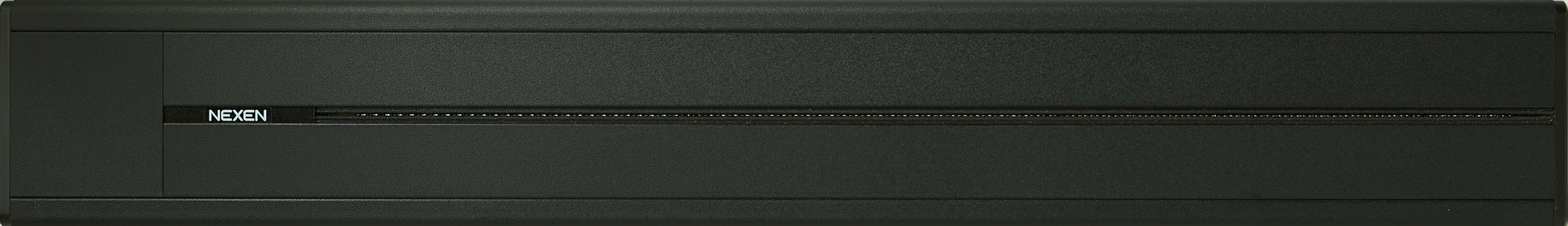

Nexen electric bar SLIM SURFACE+ series

  • $158.00 SGD


Nexen Pro and Nexen Slim are the two series of Electric Bars that we currently offer. Nexen Pro is highly customisable in terms of length and adding multimedia connectors, while Nexen Slim is the thinnest power track available in the market.



Technical specifications

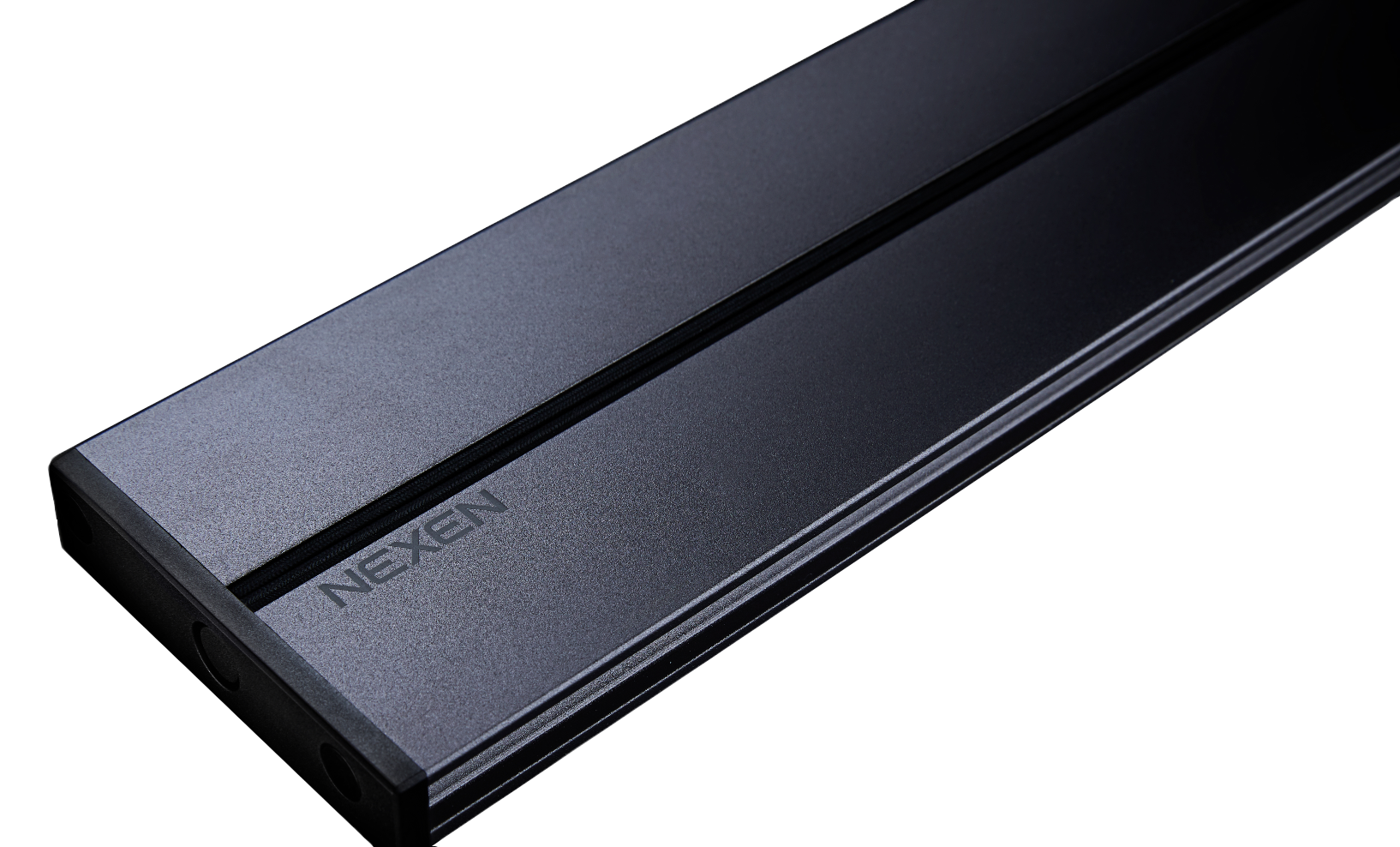

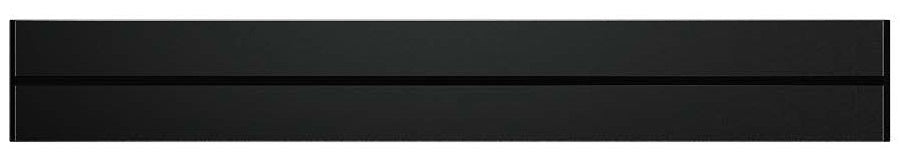

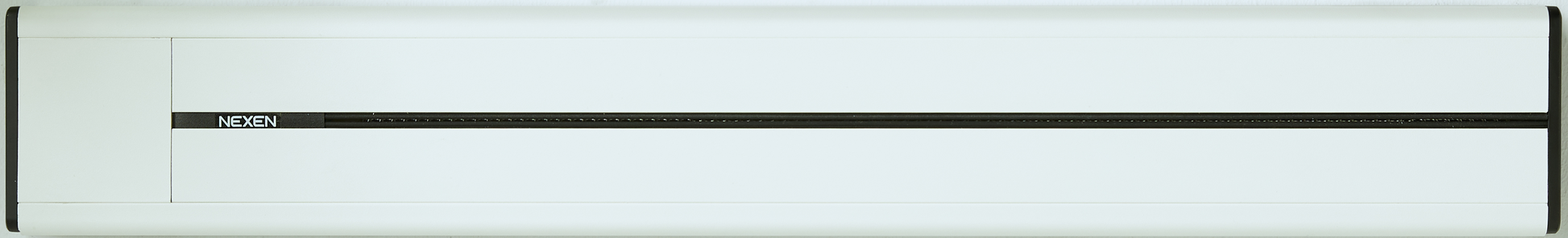

SLIM SURFACE

Standard Length :  50cm, 75cm,100cm Dimension : 86mm x 19mm

Weight(based on 1m) 1.75kg approx.

* Max length 150cm

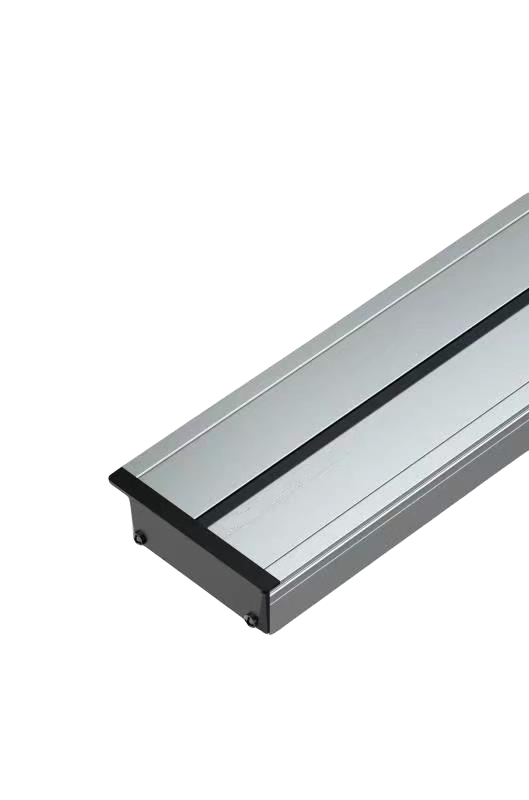

SLIM RECESS

Standard Length :  50cm, 75cm,100cm Dimension : 80mm x 17mm

Weight(based on 1m) 1.4kg approx.

* Max length 150cm



Rated current : 32a~

Rated voltage : 250v~

Terminal wire capacity : 1.25 -6(m²)

Assemble in :  Singapore

Warranty :  3 years

Multimedia connectors : N.A

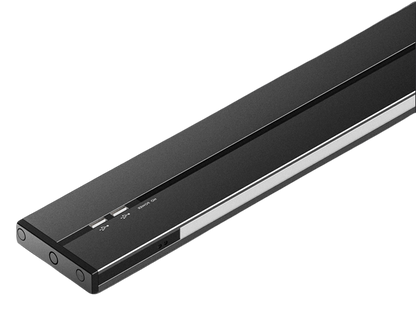

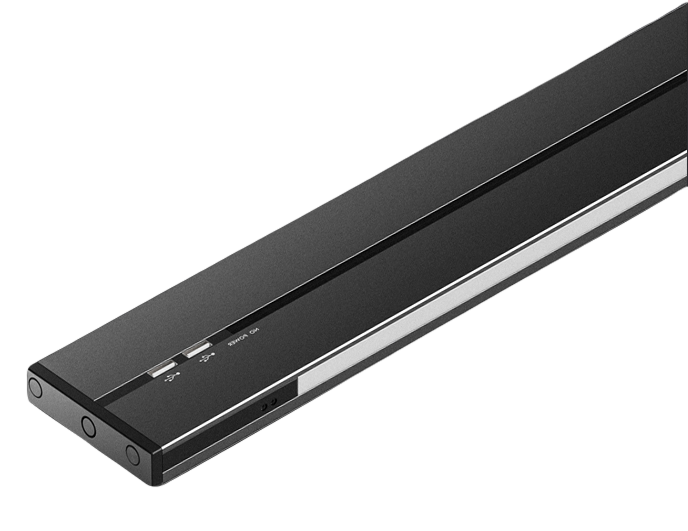

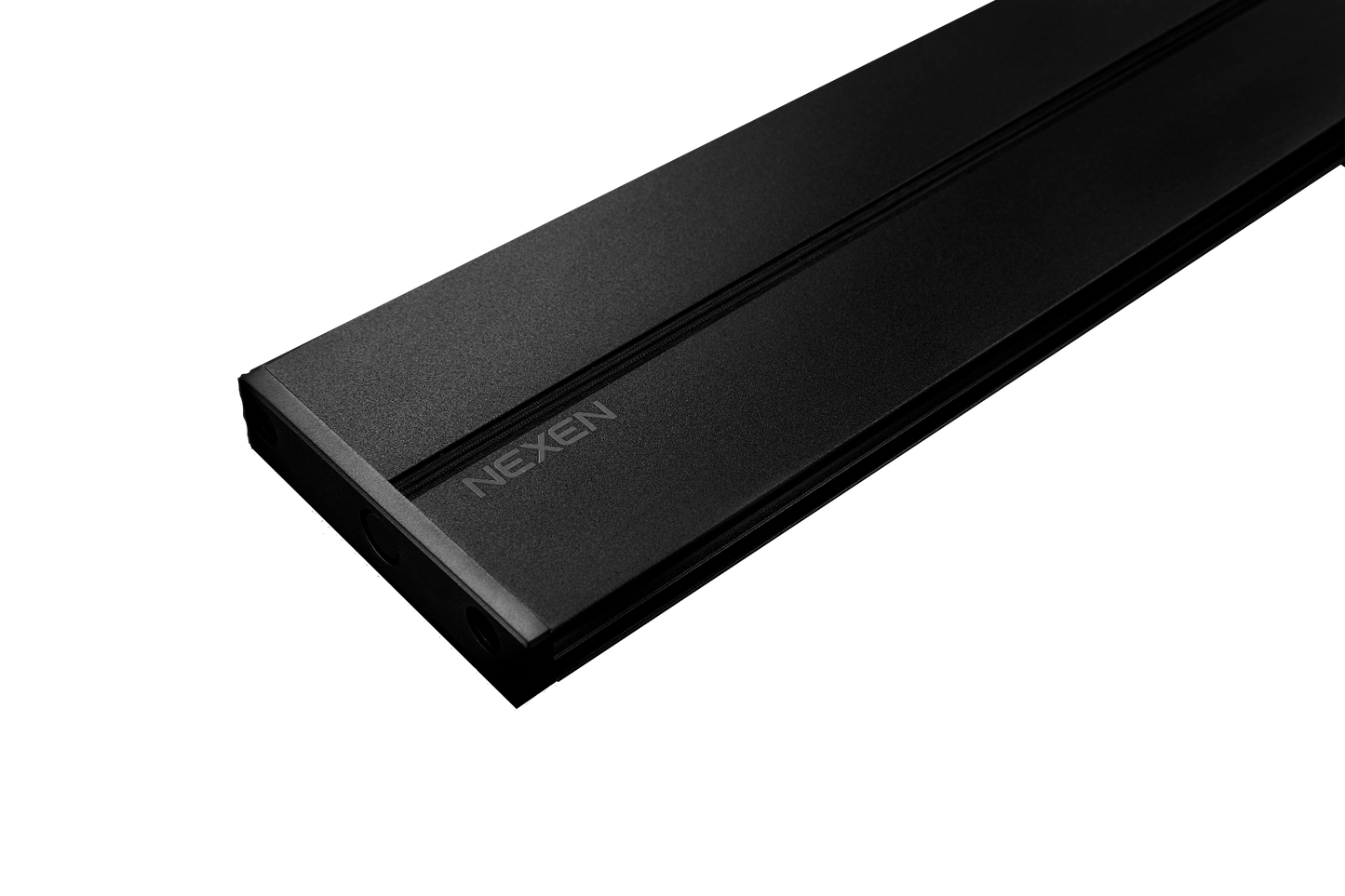

SLIM SURFACE +

Standard Length :  50cm, 75cm,100cm Dimension : 86mm x 19mm

Weight(based on 1m) 1.7kg approx.

* Max length 150cm



Built-in USB Charger(dual port):

Input Voltage: 220V AC

Output Current: 2.4A max

Output Voltage: 5V DC

Socket Type: USB type A

Warranty Period: 1 year



Touch Sensor LED light Strip:

Input Voltage: 5V DC

Output Voltage: 5V DC

Output Current: 0.6A

Output Power: 3W/m

Lumen: 1000lm/m

Warranty Period: 1 year



PRO SURFACE

Standard Length :  60cm, 80cm,100cm Dimension : 88mm x 29mm

Weight(based on 1m) 2.25kg approx.

* Max length 200cm



Rated current : 32a~

Rated voltage : 250v~

Terminal wire capacity : 1.25 -6(m²)

Assemble in :  Singapore

Warranty :  3 years

Multimedia connectors : YES



PRO RECESS

Standard Length :  60cm, 80cm,100cm Dimension : 80mm x 34mm

Weight(based on 1m) 2.2kg approx.

* Max length 200cm



Rated current : 32a~

Rated voltage : 250v~

Terminal wire capacity : 1.25 -6(m²)

Assemble in :  Singapore

Warranty :  3 years

Multimedia connectors : YES



** Multimedia Connectors (Pro Series Only)

HDMI

CAT6

Dual port USB charger (2.4A,5V,DC)



*** ADDITIONAL PARTS ( Pro Series Only)

blank cover with housing



 ADAPTOR & ACCESSORIES

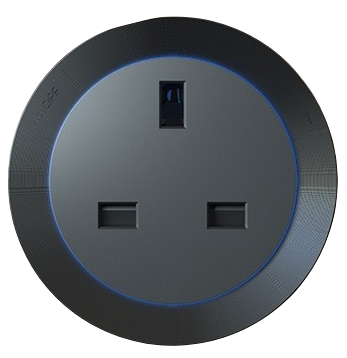

Premium UK adaptor

Technical Specification:

Rated Current: 13A~

 Rated Voltage: 250V~

Diameter: 67mm

Thickness: 43mm

Weight: 82g

Warranty Period: 3 year

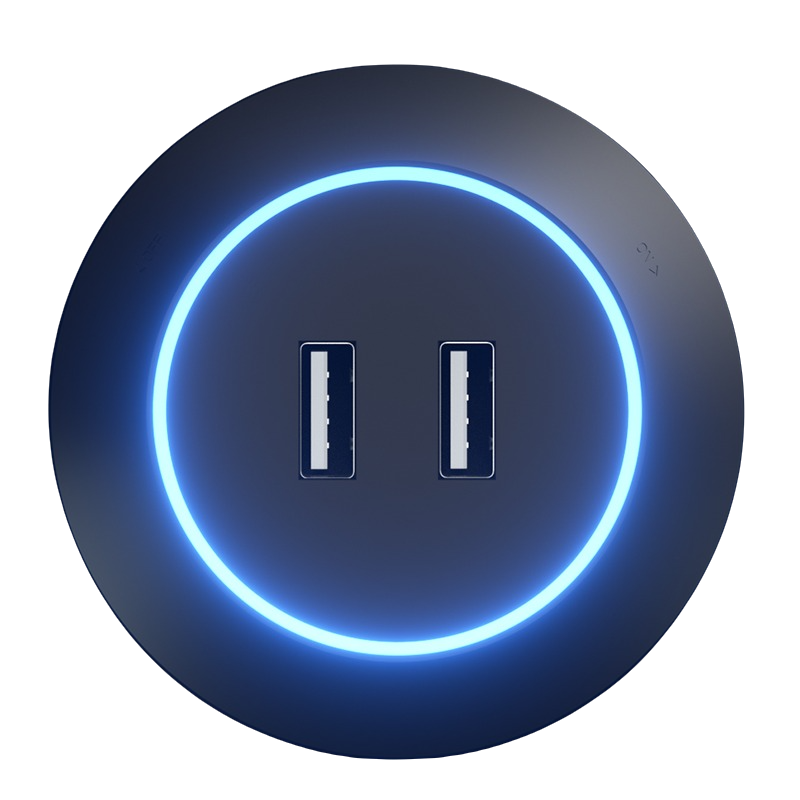

USB charger

Input Voltage: 220V AC

Output Current: 2.4A max

Output Voltage: 5V DC

Socket Type: USB type A

Diameter: 67mm

Thickness: 43mm

Weight: 90g

Warranty Period: 3year



 ****Installation not included
