MÖWE

MÖWE 6" Multi-Function Smart Touch Control Panel

MÖWE 6" Multi-Function Smart Touch Control Panel

Regular price $600.00 SGD
Regular price Sale price $600.00 SGD
Sale Sold out
Tax included.

Zigbee 6" Smart Touch Panel

• iAppliance App enabled

• Intuitive Touch Controls

• Multi-device Compatibility

• Customizable Scenes

• Real-time Status Monitoring

• Notifications and Alerts

• Neutral required

Relays: Built in 2 relays (200W each) which can control 2 switches for the room lights

**Sync with MW801Z Wireless Zigbee Gateway and you are set to go



• Integrated with multiple functions, it can be used as ZigBee gateway and variety of control panels such as light control panel, switch panel, visual doorbell panel, etc, to achieve a user-friendly interactive experience.

• Connect multiple scenes, which syncs with mobile phone, replaces the role of scene switch, combined with voice control, to be your intimate home keeper.

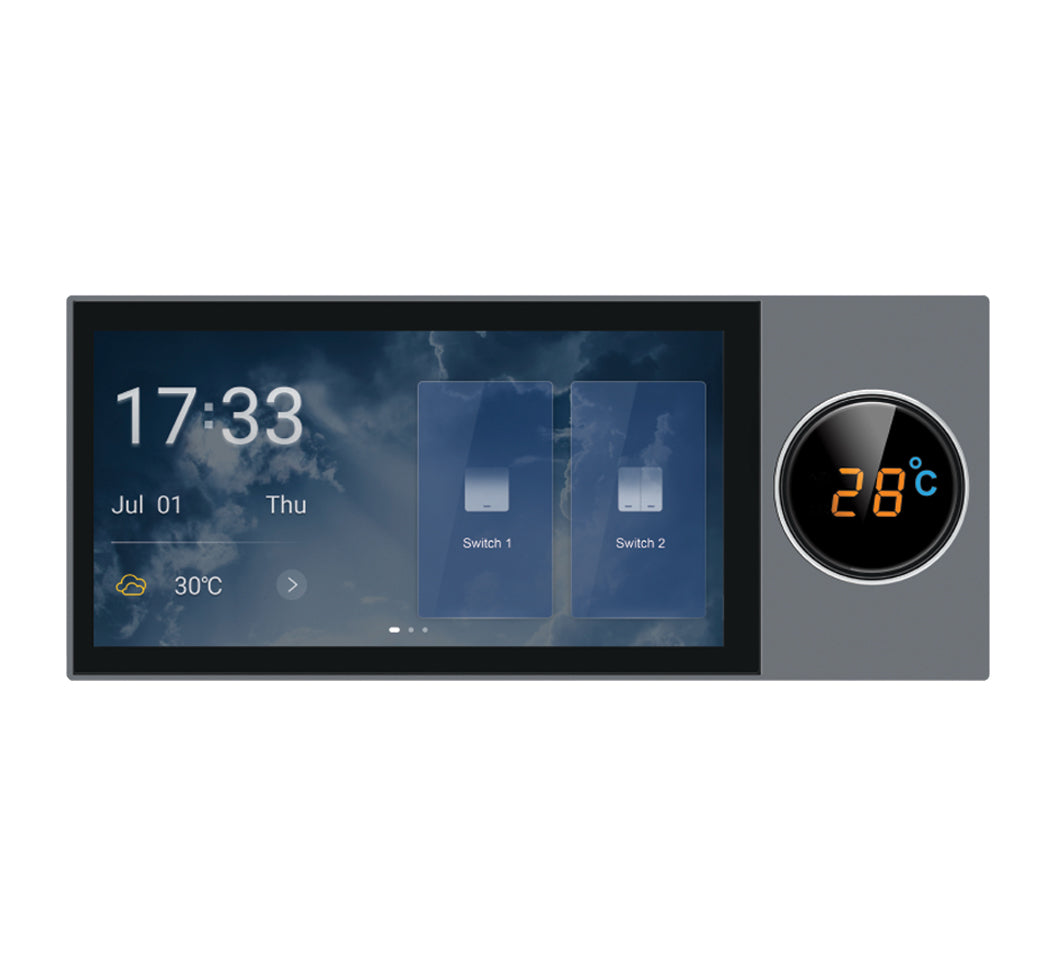

• With the 6-inch LCD screen, it dynamically presents the date and time, to intimately broadcast the daily weather on home page as your life assistant. You can also add common scenarios and devices to the home page for one-click operation.

.

Specifications

CPU: PX30 Quad Core Cortex A35

RAM: 2GB, ROM: 8GB

Screen: 6 inch Main Screen (720*1440 - Multi-touch)

+ Knob Screen (240*204 - Multi touch)

Ethernet: 10M/ 100M Adaptive

RS485: Half-Duplex 3.81mm terminals

WiFi: 802.11b/g/n 150Mbps

Zigbee: 802.15.4 PHY/MAC Zigbee

Relays: Built in 2 relays (200W each) which can control 2 switches for the room lights

Music Play: Built in 1W Mono speaker

Light sensor: Automatically adjust the screen brightness according to environment

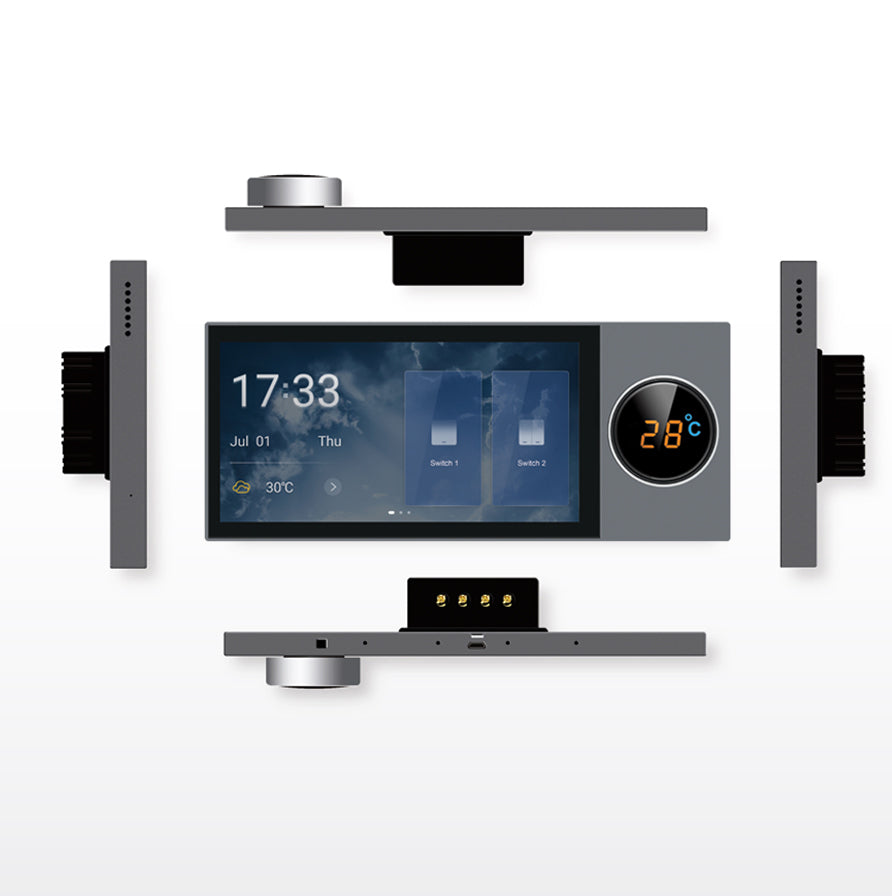

Product dimension: 205.6x85.6x52mm  (with the base)

205.6x85.6x10mm (without the base | Outside the wall)

60.9x62.9x24.6mm (back base dimension)

60mm (bolt hole spacing)

Nt Wt: 328g

Neutral (N): Required

Warranty

1 year (carry-in)

Documentation
