MCO Home Shutter Panel
MCO Home Shutter Panel
Description

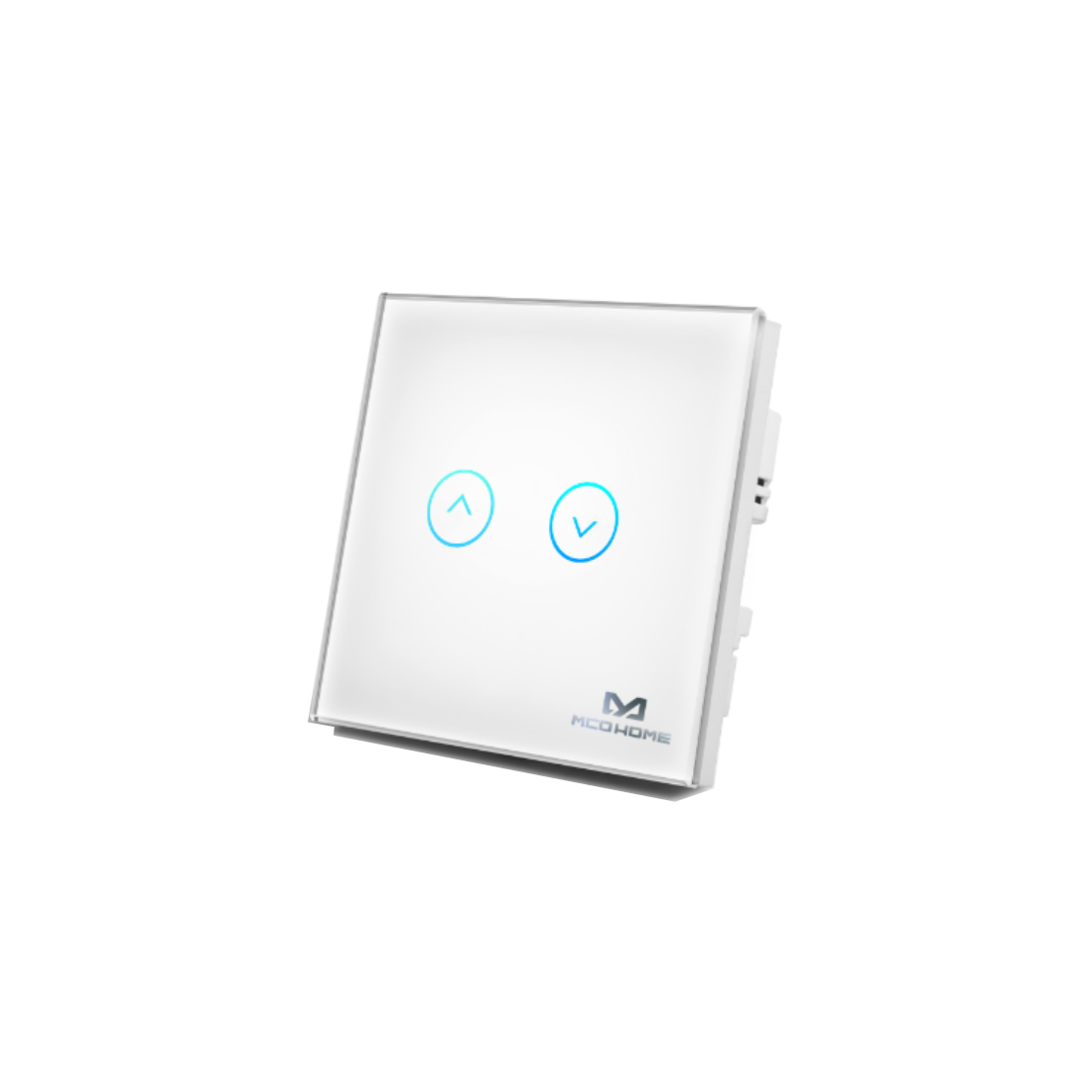

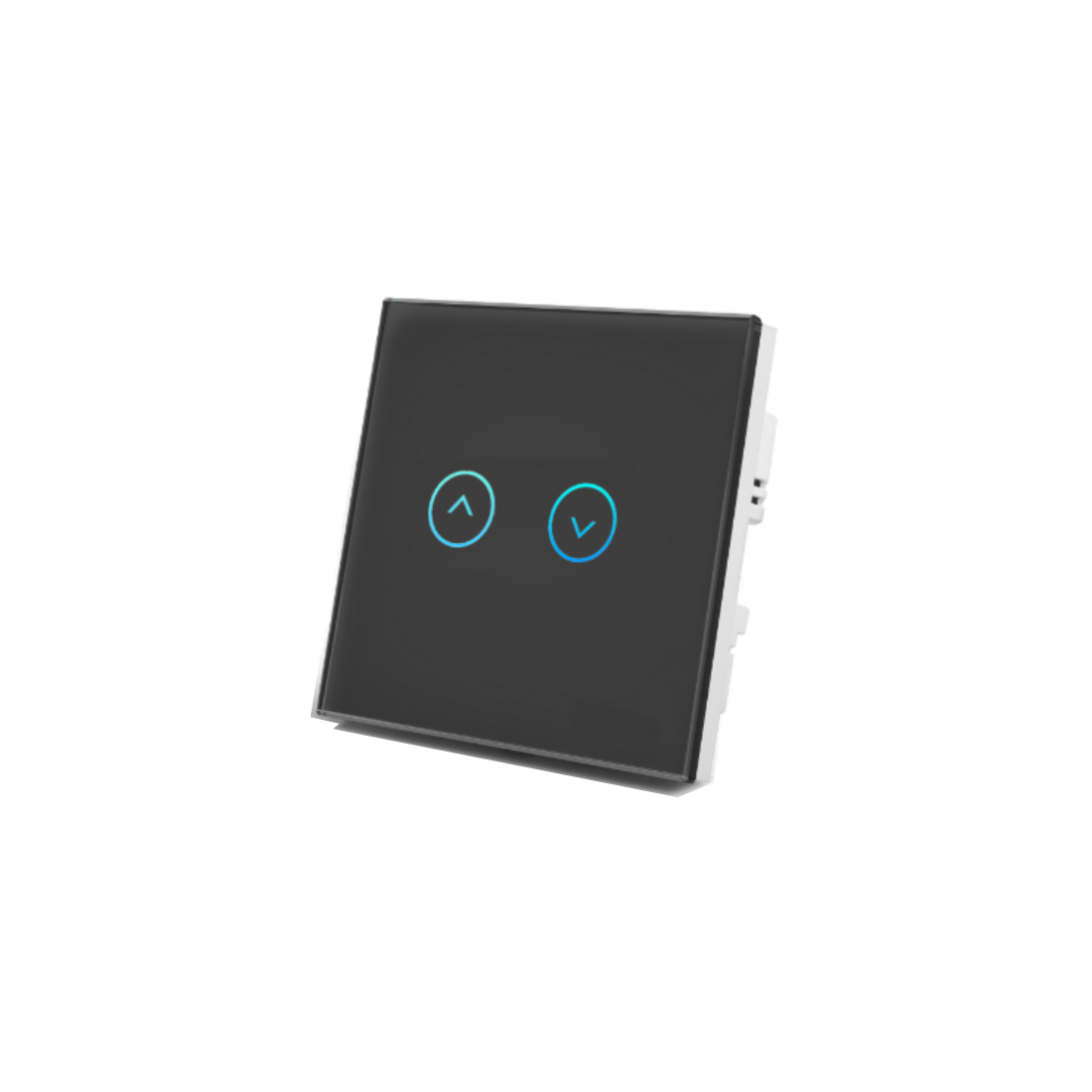

The MCO Home Shutter Panel lets you control electric roller blinds, awnings, venetian blinds, garage doors, gates or any device that is powered by an AC electric motor. You can control them either remotely through a Z-Wave network or manually by touch using the beautifully designed glass panel.
Being an AC powered switch, it also works as signal repeaters for the Z-Wave network, enhancing the robustness of your Z-Wave system, making your home smarter and easier to live in.
Features
- Compatible with any Z-Wave controller via Z-Wave Plus
- Allows monitoring of the motor's energy consumption
- Supports calibration to detect the limits of the motor
- Controls the position of the blinds or the angle of a venetian blinds
- Comes with capacitive touch buttons for manual control
Specifications
- Power Supply: 85~265VAC, 50/60Hz
- Output: 2 * Max 3.5A
- Motor Type: Single-phase asynchronous AC motor
- Working Condition: 32°F-104°F (0°C-40°C)
- Support Automatic Calibration and Manual Calibration
- Flush-mounted in 86*86mm square junction box (Asia,UK)
- Z-Wave (Plus) frequency: 868.42MHz(EU) , 908.42MHz (US) or other frequency
- Energy metering function
Manuals
Z-Wave MCO Home Shutter Panel Operation (Size: 64.9 KB)
Z-Wave MCO Home Shutter Panel Wiring Diagram (Size: 4.11 KB)
Z-Wave MCO Home Shutter Dimmer Parameter Table (Size: 11.9 KB)
