Aeotec MultiSensor 6
Aeotec MultiSensor 6
Description
Make Your Home 6x Intelligent With Aeotec MultiSensor
Aeotec MultiSensor 6 is the smartest way to catch all the action happening in your home in real time. The beautifully designed device monitors movements, tracks ambient lighting, keeps a tab on indoor temperature and humidity, listens for seismic activity, and also protects your home from UV lighting.
The smart sensor has been designed to provide an integrated solution for staying connected with your home, even while you're at work or on a vacation. Aeotec MultiSensor 6 can be configured to work with your ZWave controller to get real time updates and notifications about the activity in your home. Want to get alerts when someone enters your home, or want to get notified when there's an unexpected change in temperature? Aeotec MultiSensor 6 makes tracking home activity in real-time possible.
The fifth generation of the multisensor device has some massive improvements, with the sensor now relaying signals faster and farther. It has also been calibrated for accurate environment monitoring and comes with specialized sensors sourced from leading companies in Switzerland and U.S.
Aeotec has also reduced the number of batteries (batteries not included) required to power up the device to two, but the device now delivering 50% more battery life, with the average lifespan now extended to two years.
Weighing just under 75 gms, Aeotec MultiSensor 6 is also one of the lightest sensors in the market that can be installed even with a double-sided tape. It's also 70% smaller than the previous version, which means it can fit into any home environment, without making its presence felt.
Track Intruder Movements MultiSensor 6's motion sensor is perfect for more than just an intelligent security system. With 5 metres range and a 120° field of view, MultiSensor 6 captures motion data and intelligently tracks every activity in your home. Use it to extend security in your home and monitor movements even while you're away. MultiSensor 6 makes your home automation system more powerful and more intelligent. |
Monitor Indoor Temperature From motorised curtains and windows to fans and thermostats, there are a lot of ways that you can use Z-Wave to keep the temperature of a room absolutely perfect. MultiSensor 6 comes equipped with a calibrated sensor that can accurately measure temperature in the range of -10~50°C (14 to 122°F). It can also connect with Z-Wave smart gateway to intelligently control your home's heating. |
Detect Ambient Lighting Automated lighting is only as smart as the system that powers it. MultiSensor 6's digital light sensor allows you to accurately detect the ambient lighting in your room. Intelligently configure your home automation system to open or close curtains, or control the installed lights and dimmers based on your home's illumination. |

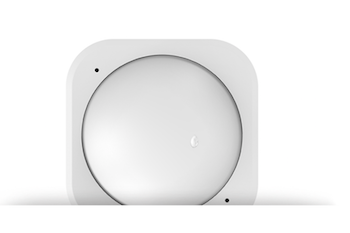

Check Moisture and Humidity MultiSensor 6 offers incremental monitoring of a humidity ranging from 0% to 100%. Keep a tab on the humidity levels and automatically configure your fans, air-conditioners or dehumidifiers to maintain the perfect environment in your home. Monitoring your home on such an infinitesimal level has never been so convenient. |
Record Seismic Activity MultiSensor 6 can report and detect event-based vibrations, including subtle seismic activity. The inbuilt vibration sensor also provides protection against external tampering and would notify you in case it's moved from its place of installation. It will also be able to record subtle seismic activity within your home. |
Protection from UV Radiation Perfectly managing an environment means understanding it perfectly. The intelligently designed sensor can differentiate between UV lighting and ambient lighting. Configure it with your room's shades, curtains and windows to protect your furniture from bleaching or use it to build a healthy indoor environment. |
Perfectly Small
MultiSensor 6 is perfectly small and beautifully designed. With its 42 mm body it can be used anywhere in your home. But its design and styling hasn't been crafted simply to be attractive. A squared based allows MultiSensor 6 to offer an extended battery life of over 2 years. MultiSensor 6 has been designed to be more than beautiful - it's been designed so that its presence in a room is never obvious.
Smart Accessories for Perfect Installation
Recessor Install MultiSensor 6 in a ceiling or wall cavity with recessor (sold separately). Its magnetic clasps allow simple removal of the sensor. |
Mounting Arm Designed for corner installations, the mounting arm allows you to rotate the MultiSensor by 360°. |
USB Cable The 1.5 metre USB cable provides the option to power up the sensor through mains, replacement to batteries. |
Tape Since Aeotec MultiSensor 6 weighs just 74 grams, it can be installed even using a double sided 3M tape. |
Features
MultiSensor Device MultiSensor 6 packs six sensors-- Motion, Temperature, Humidity, Light, Vibration and UV to deliver a complete smart home experience. |
Extended Connectivity MultiSensor 6 now comes with faster and better connectivity, with signals now reaching 50% further, up to 150 metres, and also 250% faster. |
Advanced Sensors Aeotec has designed MultiSensor 6 using the world's best sensing technology, with special sensors sourced from Switzerland and U.S. |
Longer Battery Life Forget changing your batteries. MultiSensor now works up to 2 years before you need to change batteries (batteries not included), 4x the life of first MultiSensor. |
Smaller in Size The new MultiSensor 6 has been reengineered to shrink 70% in size. The smart sensor monitors activity without making its presence felt. |
Lighter in Weight MultiSensor 6 weighs just 74 gms, 50% lighter than its first generation. It can be installed anywhere, supported even by a double sided tape. |
Superior Calibration The inbuilt temperature, humidity, light and UV sensors can be manually calibrated to suit every environment and every room. |
Number of Batteries Aeotec has reduced the number of batteries in MultiSensor 6 from four AAA that have powered past MultiSensor to two CR123A (batteries not included), making the sensor lighter and more energy-efficient. |
Personalized Readings MultiSensor 6 provides you the convenience to read the temperature as per your personal preferences. Fahrenheit or Celsius- you choose. |
Digital Light Sensor MultiSensor 6 comes with a superior digital light sensor that's capable of sensing lighting between 0 lux to 30000 lux in real-time. |
Tamper Protection MultiSensor 6 warns you on every attempt to tinker or remove the device, and keeps you in control at all times, while ensuring home safety. |
Secure Communication For enhanced security, the smart MultiSensor 6 uses AES-128 bit data encryption to communicate with Z-Wave devices in your home. |
Specifications
- Model number: ZW100
- Measured Temperature Range: -10 to 50°C .
- Accuracy: ±0.5°C.
- Humidity Range: 20% RH to 90% RH.
- Accuracy: ±3% RH (at 25°C ).
- Lighting: 0 LUX to 3000 LUX.
- Motion Sensitivity: 3 meters to 5 meters
- Power Supply: USB DC 5V or battery power(2×CR123A batteries, 3V, 1500mAh).
- Operating Temperature: 0 to 40°C.
- IP Rating: IP20.
- Wireless Range: 150m outdoors
- Kit Contents: Aeon MultiSensor6, Swivel Arm, mounting tape and USB cable (ceiling recess adapter available separately)
Manuals
Aeotec Multisensor 6 Manual (Size: 539 KB)Aeotec Multisensor 6 Engineering Sheet (Size: 319 KB)
