Schneider Electric

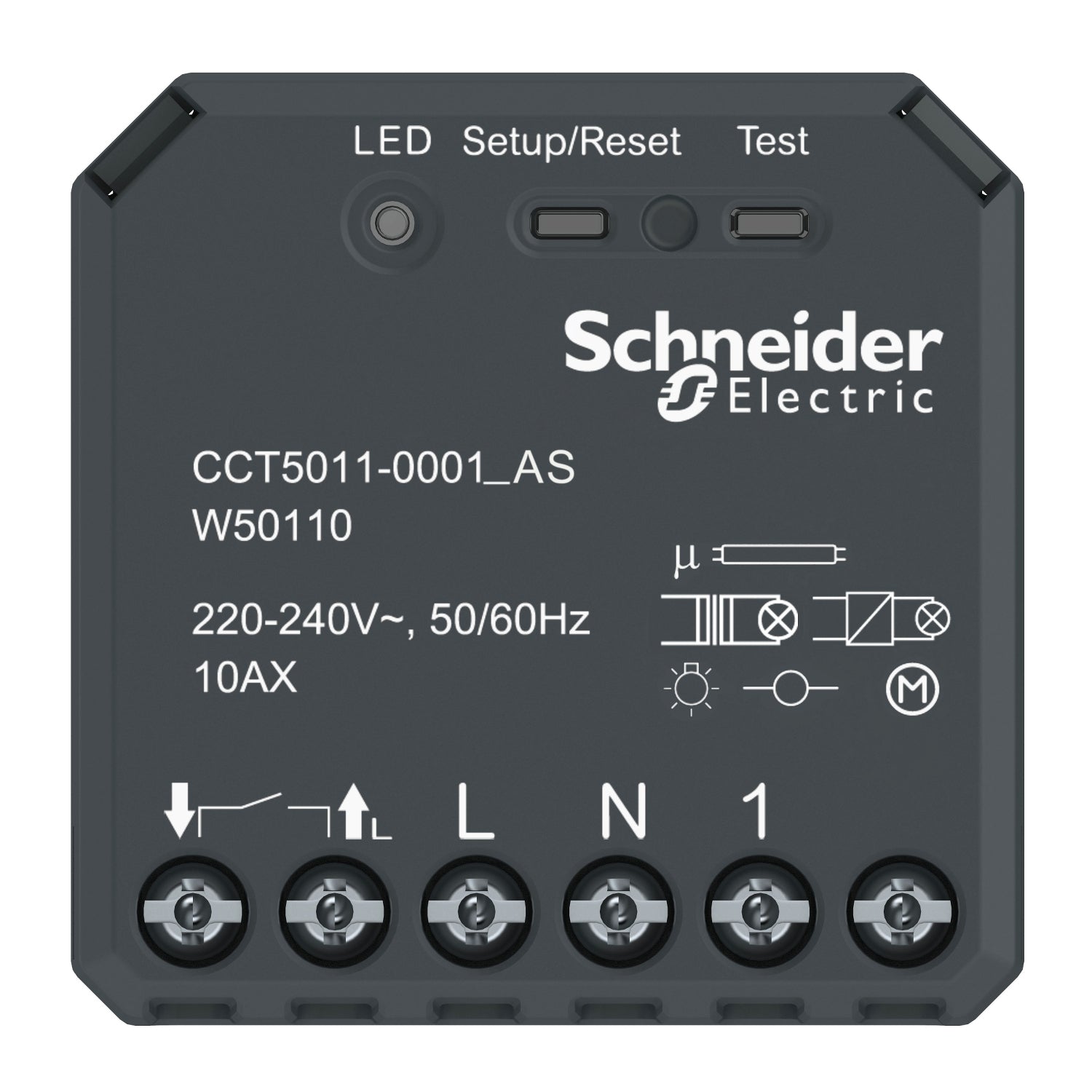

Wiser 1-Gang Micro Module Switch

Wiser 1-Gang Micro Module Switch

Regular price $134.68 SGD
Regular price Sale price $134.68 SGD
Sale Sold out
Description

Wiser 1 Gang Micro Module Switch can replace or convert a conventional switch to a connected switch. It can be installed in a standard wall box and connected to ohmic, inductive or capacitive loads. The module is actuated through the Wiser by SE app or connected mechanical switch..

It supports a 3-wire installation (live, neutral, load) to multiple load types such as incandescent lamps, halogen lamps, LED, compact fluorescent lamps, and motorized loads. The associated fuse rating is 16.

Specifications

  • Color: Dark grey
  • Load types: Incandescent lamp, Halogen lamp, Fluorescent lamp, LED lamp, Motor
  • Rated operational voltage: 200...240 V AC 50/60 Hz
  • Standby consumption: 0.3 W
  • Associated fuse rating: 16 A
  • Local signalling: Programming indication:LED (green, orange and red)
  • Communication network type: ZigBee IEEE 802.15.4 (2.4 GHz)
  • Maximum 10 auxiliary push-buttons
  • Wiring configuration: With neutral²
  • Dimensions: 22mm (embedding depth), 43mm(width), 43mm(height)
  • Standards: EN 60669-2-5, IEC 60669-2-5, CE
  • Ambient air temperature for operation: 0…35 °C
  • IP degree of protection: IP20
  • Operating altitude: <= 2000 m
  • Environmental characteristic: Indoor Use

Warranty

2 years carry-in one on one replacement
