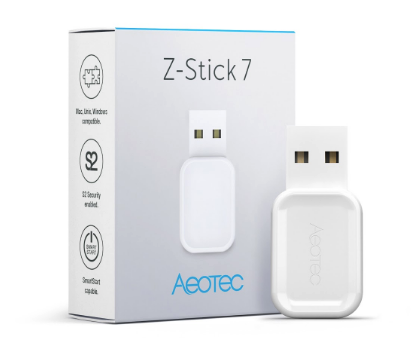

Aeotec Z-Stick 7

Description

• Works with Raspberry Pi, Windows, Mac, Linux to create a zwave hub for control of Z-Wave and Z-Wave Plus devices
• German engineered to use Aeotec exclusive Gen7 and 700 series technologies. Offers ZWave SmartStart and S2 security
• Faster, further. Z-Stick 7 wirelessly transmits up to 250% further in open-place space and with 18% faster CPU
• Compatible with Z-Wave enabled, home automation software including Home Assistant and Indigo 7. No software included



Specifications

Model Number: ZWA010-C



Product Weight: 3.5 g

Total Package Weight: 21.5 g

Product Dimensions: 37 x 17 x 8.5 mm

Package Dimensions: 50 x 65 x 20 mm



Library Type: Bridge Controller

Device Type: Z-Wave USB Controller

Z-Wave Plus Certified: Yes

SmartStart: Yes

Z-Wave Chip: ZGM130

Z-Wave Version: Series 700 and Gen7

Security: S2 native

QR Code Inclusion: SmartStart native

Z-Wave SDK: 7.11.0 or later

Power Supply: USB DC 4.75V to 5.25V

Sensitivity of the RF receiver:

Standby current: 18 - 20 mA

Max current: 40mA

Recommended host current: 50mA

Known compatibilities:

Tested to be compatible with Raspberry Pi 3 and up

Tested to be compatible with Windows 10 OS

Tested to be compatible with Linux OS

Tested to be compatible with OSX OS

Operating Temperature: 0°C to 40°C

Storage Temperature: -20 C to 70 C

Product Dimensions: 37 x 28 x 8,5 mm

Operating Distance:

Up to 50 m / 130 ft indoor

Up to 150 m / 500 ft outdoors

Manuals

Aeotec Z-Stick Manual (Size: 117 KB)
