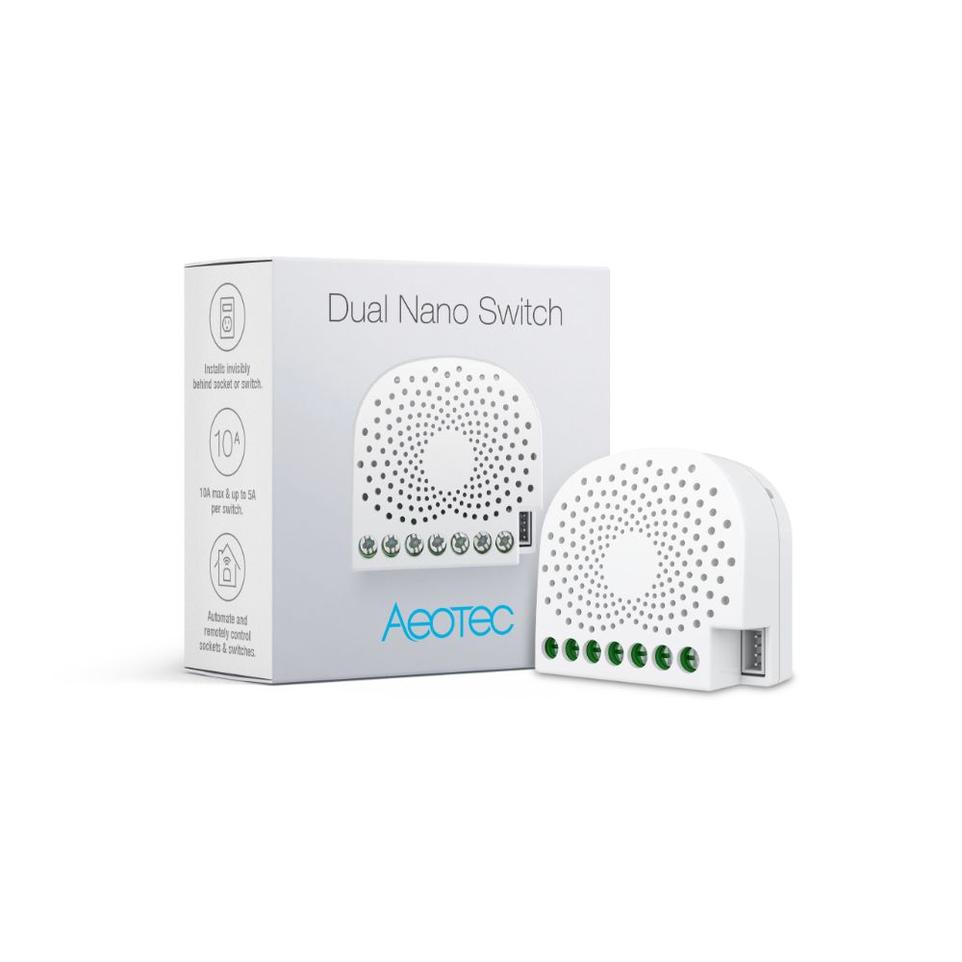

Aeotec Dual Nano Switch
Aeotec Dual Nano Switch
Description
Control any switch and socket wirelessly from anywhere.
Aeotec Dual Nano Switch is a low-cost ZWave Switch specifically used to enable Z-Wave command and control (on/off) of any wall switches. With the Aeotec Dual Nano Switch all switchable and non-dimmable electric installations (e.g. lighting, sockets...) can be integrated into a Z-Wave network. Thus, the connected load can be switched both wirelessly via Z-Wave and locally via existing wall switch. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status.

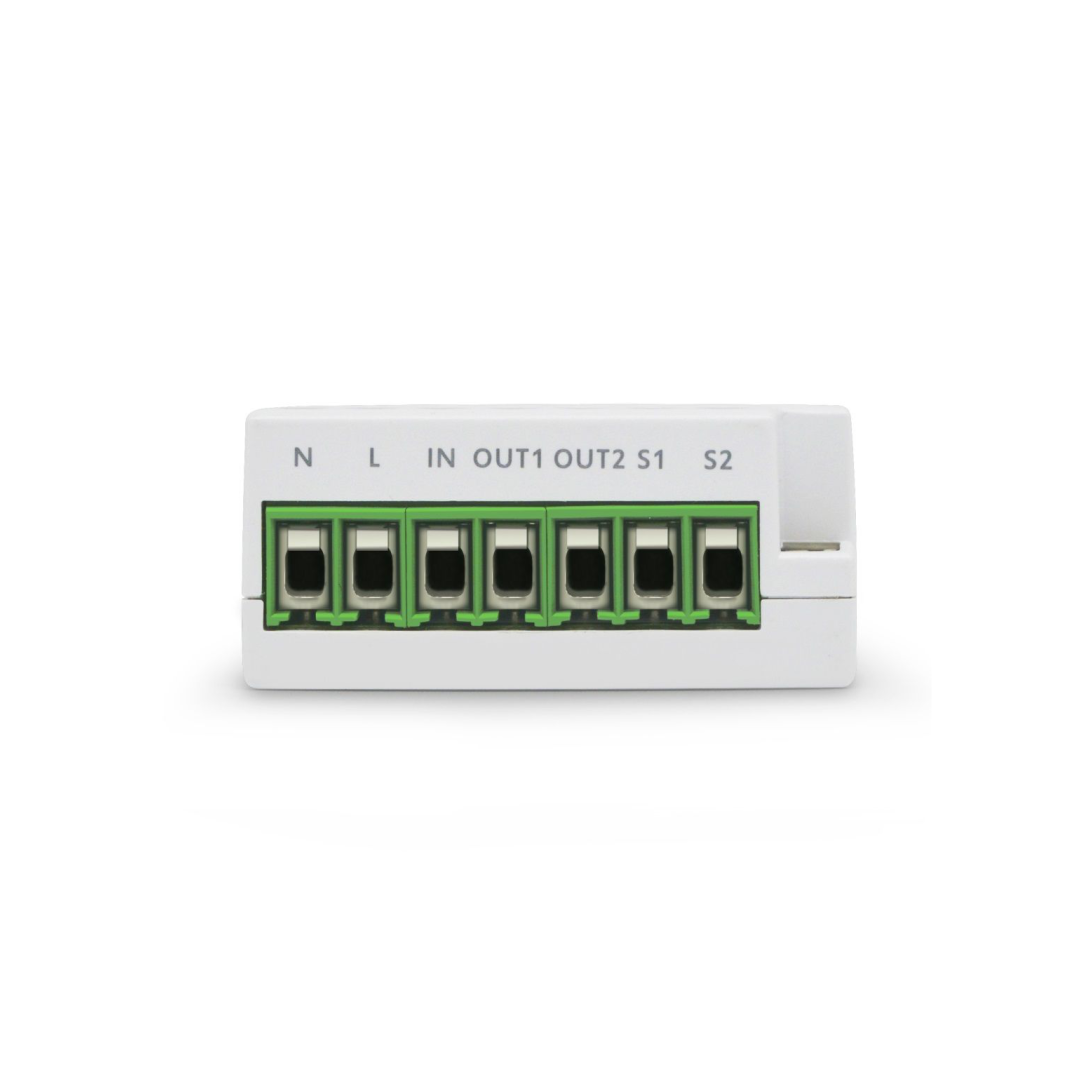

It can connect to 2 external manual switches to control the load ON/OFF independently. Its surface has a pin socket, which can be used for connecting to the touch panel, so you can also use the touch panel to control the Dual Nano Switch. The Dual Nano Switch is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.
Total Control
Nano Switch offers total control, easily. Incredibly small, each Nano Switch installs invisibly behind any of your home’s existing switches or power sockets. Simply unscrew the faceplate, install Nano Switch behind it, and you now have complete wireless control. Your old switches are instantly modern and instantly connected.
Install Nano Switch behind your wall’s power sockets and you now have wireless control and scheduling of your electronics. With optional power metering, you can reduce how much those electronics are costing you.
If you have lighting that doesn’t need dimming, install Nano Switch behind your existing wall switch to convert it to a wireless wall switch. You’ll have full wireless switch control, along with intelligent automation and scheduling via Z-Wave.
Total Ability
Once installed behind a switch or socket, Nano Switch offers unparalleled wireless control via Z-Wave Plus. It lets you control, automate and monitor your lights and power sockets from anywhere, anytime. And it does it all through enhancement – with Nano Switch, your sockets and switches don’t have to be replaced and they’ll continue to offer the same manual control that you’re used to.
Total Home
Nano Switch is a tool that installs in a few minutes. It lets you control, monitor, automate and schedule the electronics in your home. Control the electronics you use every day - your lights, appliances and entertainment systems. There’ll also be the electronics that become a part of your smart home as it grows - security and safety devices, electronics indoors and out. If there’s a reason to automate it, to monitor it or make it responsive, Nano Switch is the invisible, controlling, and responsive touch.
Safely Small and Controllable from Anywhere
Dual Nano Switch works with your existing switches and sockets and can be easily controlled and scheduled trough the Z-Wave network by a Z-Wave gateway and app. It can also be controlled by other Z-Wave devices such as Aeotec's WallMote.
Besides its small size that allows your Dual Nano Switch to be installed behind your home’s switches or sockets, Nano Switch also features with In-built surge protection and AES-128 bit wireless encryption.
Features
Powerful controlDesigned to control sockets, switches and non-dimming lights powerfully Dual Nano Switch can control up to 10 amps. |
Safer and easier wiringDual Nano Switch only works with switches and outlets that utilise a neutral wire. Thanks to its smaller design, Dual Nano Switch also connects to wires 25% thicker than past models. |
Wirelessly updatedDual Nano Switch allows for firmware updates to be wirelessly installed via Z-Wave Plus and supports Over The Air (OTA) feature for the products firmware upgrade. |
Full schedulingDual Nano Switch can also be intelligently automated and scheduled to switch on and off on a timer independently, even when your Z-Wave gateway has connection issues. |
Safely smallDesigned to fit behind a wall switch without compromising on safety, Dual Nano Switch offers twice the control at only 4.4cm x 4cm x 2.5cm. |
Low voltage alsoDual Nano Switch is great with high voltage and low voltage. It can be used to control 24VDC electronics such as light strips, alarms, doorbells, and other low-powered devices. |
Specification
- Model number: ZW140 / ZW132 (Power metering)
- Power input: 120VAC to 240VAC, 50Hz to 60Hz.
- Rated output: 6.5A per channel for resistive load.
- Total current: Max 10A.
- Max standby power: 0.8W.
- Operating temperature: 0℃ to 40℃ /32 ℉ to 104 ℉ .
- Relative humidity: 8% to 80%.
- Operating distance: Up to 492 feet/150 meters outdoors.
- IP Class: IP 20
Manuals
Aeotec Dual Nano Switch / with Power Metering Instructions (Size: 438 KB)Aeotec Dual Nano Switch / with Power Metering Engineering Sheet (Size: 274 KB)
Aeotec Dual Nano Switch Quick Start Guide (Size: 488 KB)
