Schneider Electric

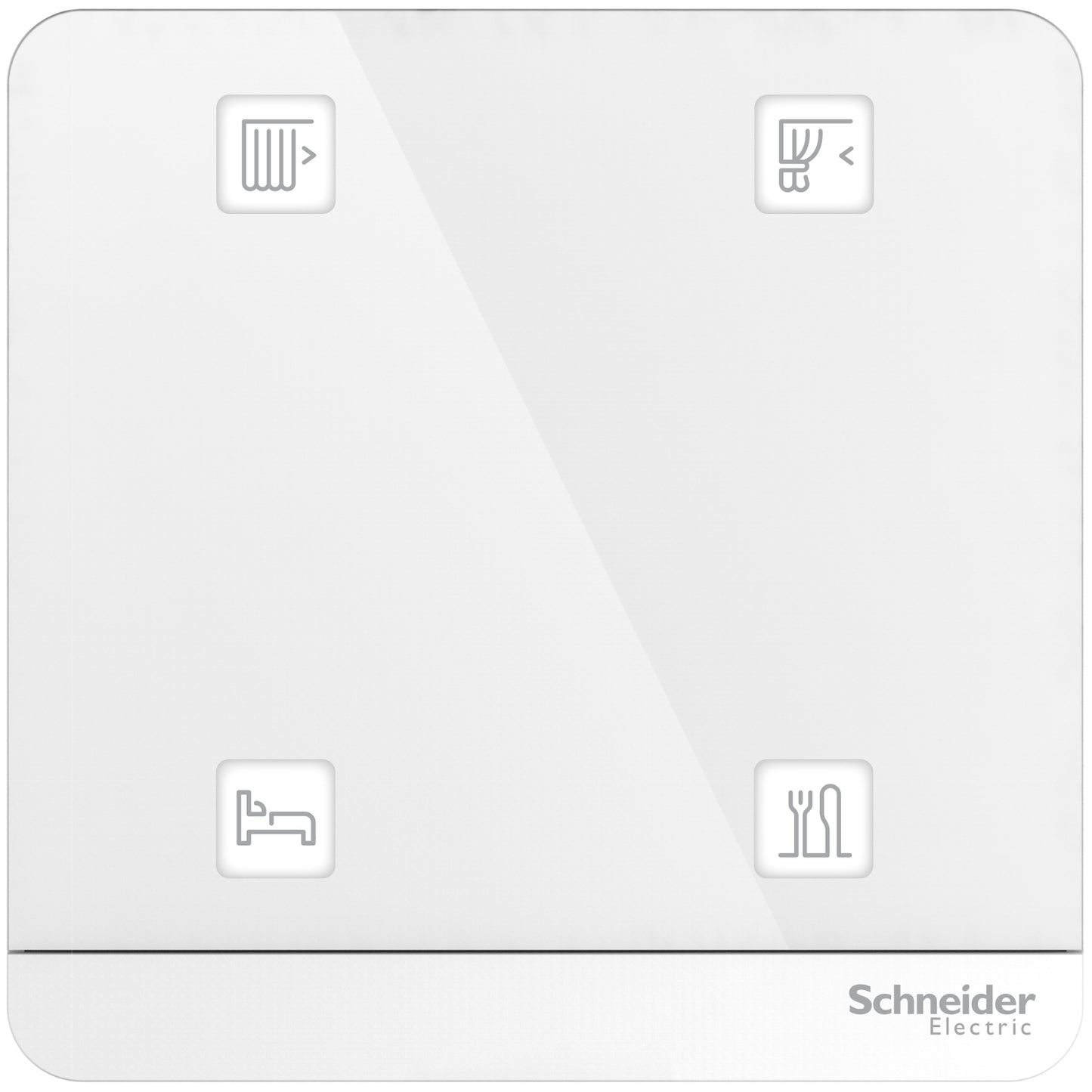

Wiser AvatarOn FreeLocate 4K White

Wiser AvatarOn FreeLocate 4K White

$149.15 SGD
$149.15 SGD
Sale Sold out
Tax included.
Description

Wiser AvatarOn Freelocate 4K is a battery powered remote controller for seamless control of individual or group of Wiser Zigbee devices. It can either be configured via Wiser by SE app or via E-mode commissioning.

It comes with 4 channels / function keys and can be set to trigger pre-defined moments and other events at scheduled intervals. It comes with 10 optional icons.

Its unique and fashionable design is patented and exquisitely manufactured with an acrylic glass cover for a high gloss finish and excellent scratch resistance. A complementary wall plate is provided for easy mounting to a wall box using its built-in magnet.

Specifications

  • Product type: Battery powered push-button
  • Color: White
  • Rated operational voltage: 3 V DC
  • Number of function keys: 4
  • Battery size: 2 x CR2032
  • Battery life: 2 years
  • Local signalling: Status indication LED (white/blue), Programmable LED (green/red/orange)
  • Number of channels: 4
  • Communication network type: ZigBee IEEE 802.15.4 (2.4 GHz) at 20 m
  • Device mounting: Surface
  • Dimensions: 86mm(width), 86mm(height), 4mm (embedding depth)
  • Standards: EN 60669-2-5, IEC 60669-2-5, CE
  • Product certifications: Zigbee 3.0
  • Ambient air temperature for operation: -10…45 °C
  • Relative humidity: 10…95%
  • IP degree of protection: IP20
  • Operating altitude: <= 2000 m
  • Environmental characteristic: Indoor Use

Warranty

2 years carry-in one on one replacement
