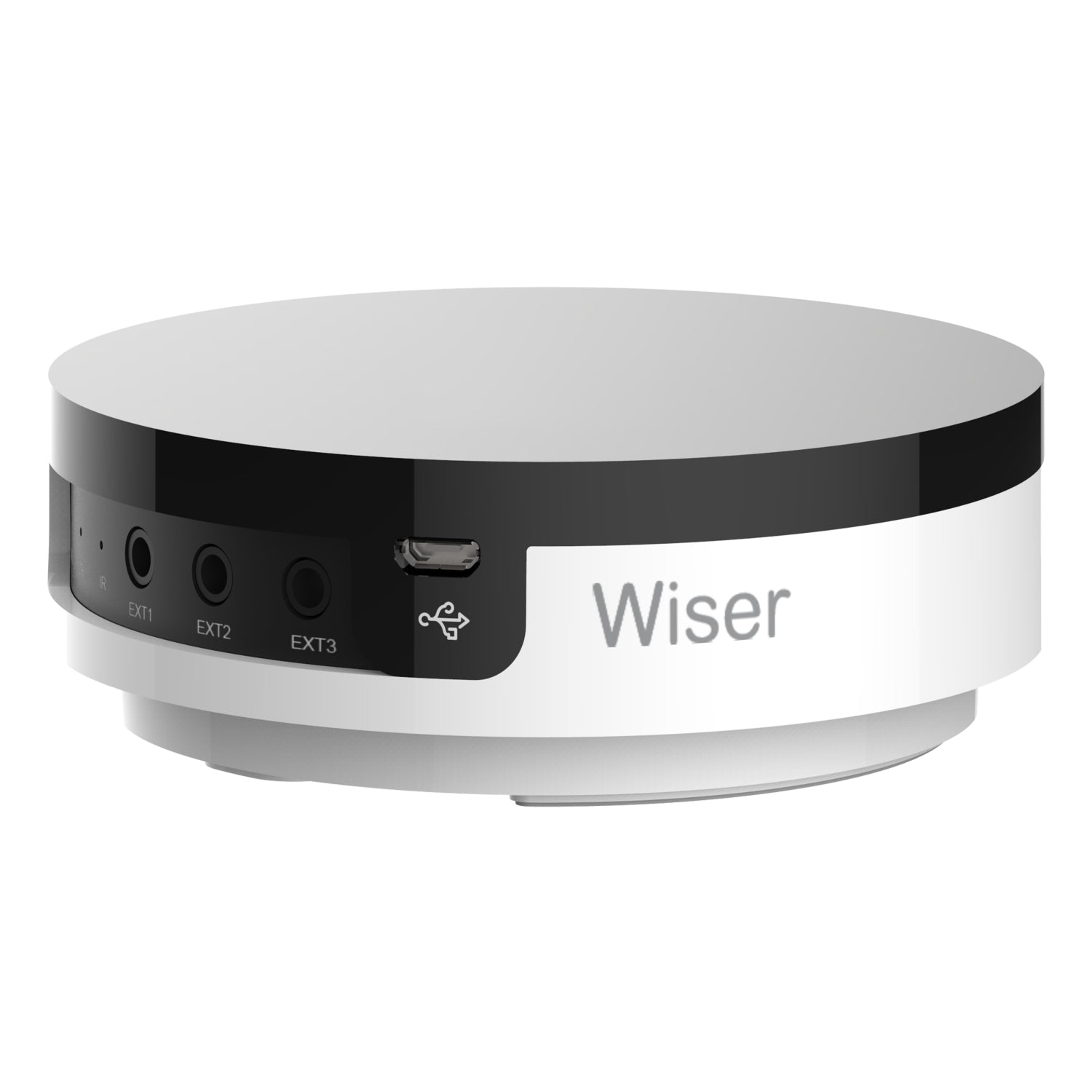

Wiser 360 Degree Zigbee to IR Convertor

Wiser 360 Degree Zigbee to IR Convertor

$347.33 SGD
$347.33 SGD
Sale Sold out
Tax included.
Description

Wiser 360 Degree Zigbee to IR Convertor enables control of televisions, air conditioners, music system and other devices via the Wiser by SE app using its built-in infrared (IR) technology. It comes with 360° IR signal coverage and 3 sockets for IR extension cables. It can support up to 8 types of IR controlled devices.

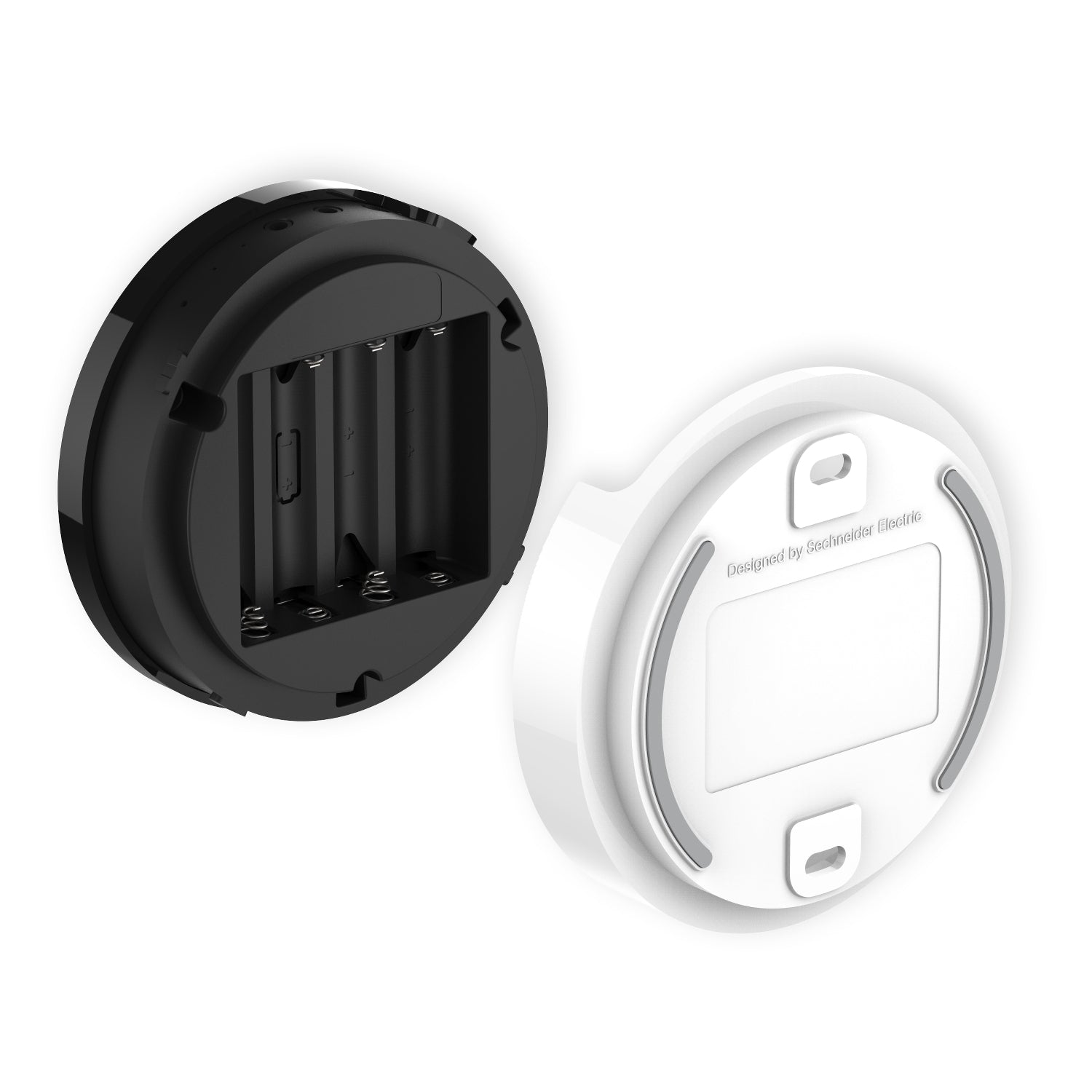

It is operated by 4 AA alkaline batteries and has a battery lifetime of 1 year. It has an IR range of 8 metres, allowing it to be fixed on the ceiling or placed on the table tops.

Specifications

  • Color: White and black
  • Battery type: 4 x AA Alkaline
  • Battery life: 1 year
  • Communication network type: Zigbee 2.4 GHz conforming to IEEE 802.15.4
  • Connector type: 1 x micro USB port female for adapter
  • Rated supply voltage: 5 V DC, < 1 A
  • Rated operational voltage: AC external adapter: 100....240 V AC 50/60 Hz
  • Local signalling: Indicator: 2 LEDs (green/red/orange)
  • Detection angle: 180° vertical position, 360° horizontal position
  • Dimensions: 32.5mm(height), 100mm(diameter)
  • Maximum sensing distance: 1 m with extension cable, 8 m infrared Wiser device
  • Ambient air temperature for operation: -10…45 °C
  • Relative humidity: 10…90%
  • Environmental characteristic: Indoor Use
  • IP degree of protection: IP20
  • Product certifications: CE
  • Standards: EN 60950-1, IEC 60950-1

Warranty

2 years carry-in one on one replacement
