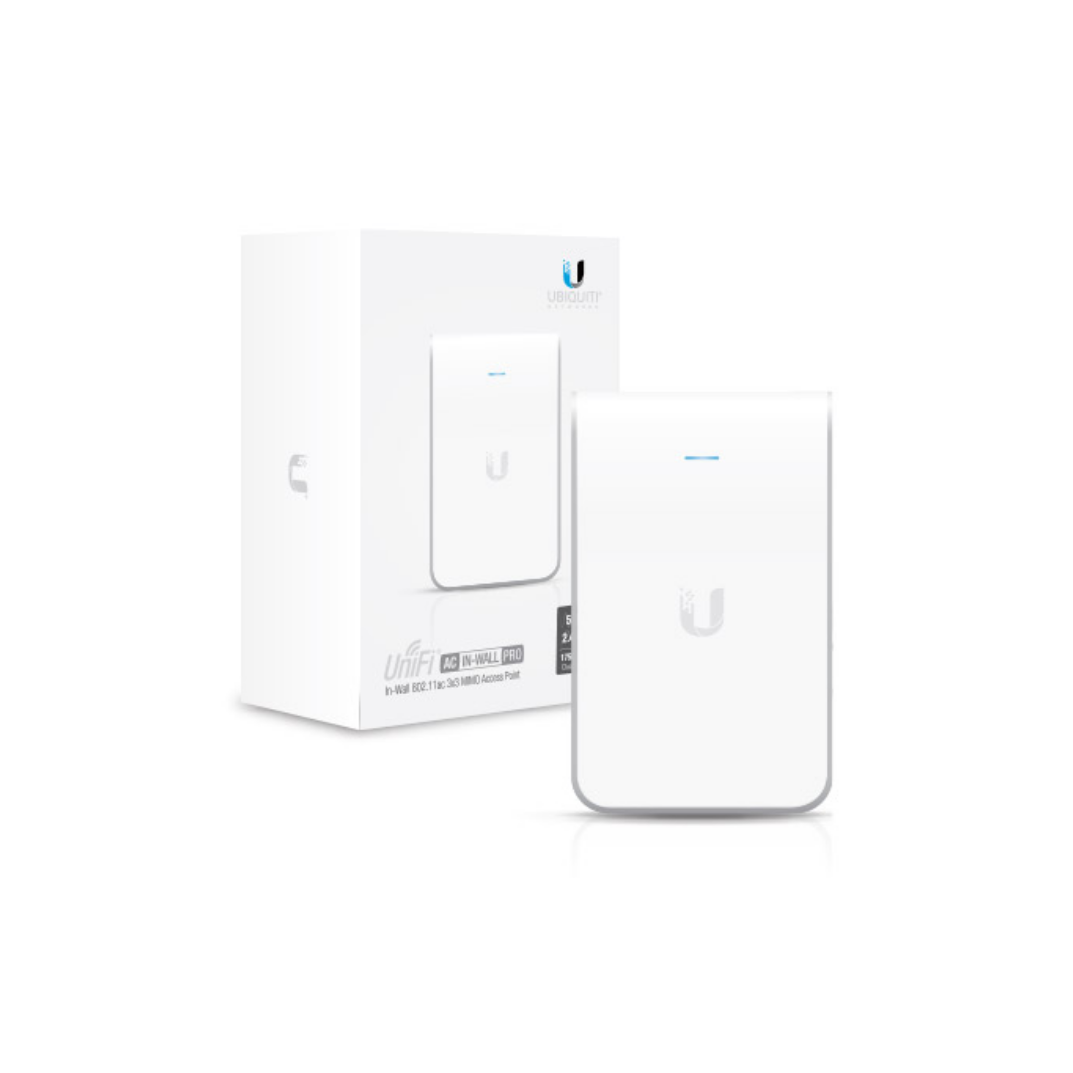

UniFi® Access Point AC In-Wall Pro

Description

In–Wall 802.11ac Wi–Fi Access Point

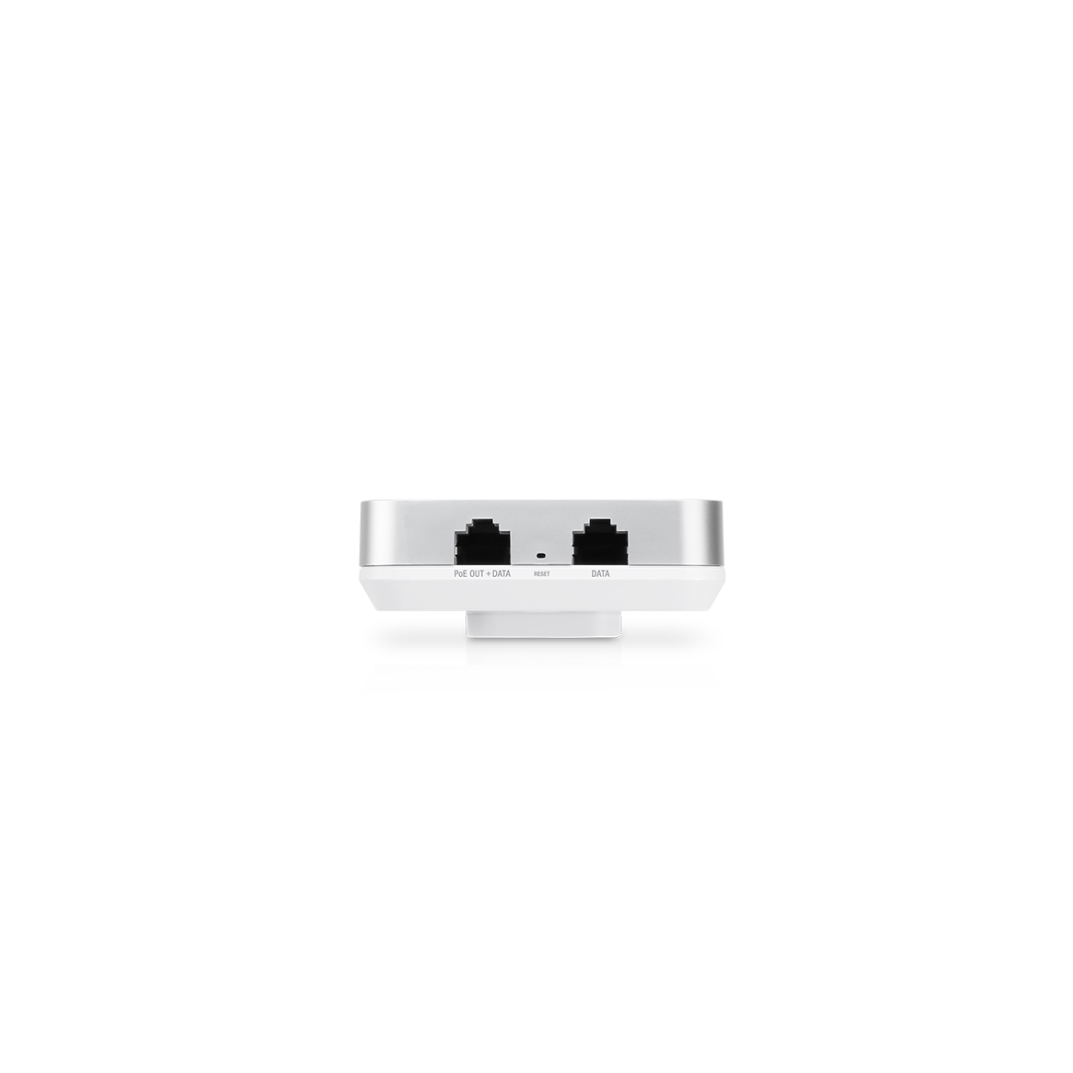

The UniFi AC In-Wall Pro AP transforms an Ethernet wall connection into a simultaneous, dual-band 802.11AC Wi‑Fi Access Point with 3x3 MIMO technology and 50% higher radio rates than the UAP-AC-IW. It features two Gigabit Ethernet ports, one of which delivers PoE to power and connects an 802.3af device to the network.

The Power of PoE

Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series. Requires Cat5e or higher

Versatile Data and PoE Output

An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source. Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.

Simple and Scalable Device Management

The UniFi® Controller provides a graphical user interface for easy configuration and monitoring of the UniFi Switch and other UniFi devices.

Model Comparison

Specifications

• Dimensions: 139.7 x 86.7 x 25.75 mm
• Weight: 210g
• Networking Interface: (3) 10/100/1000 Ethernet Ports
• Buttons: Reset
• Power Method: 802.3af PoE+ Supported
• Power Supply: UniFi PoE Switch (Not included)
• Power Save: Supported
• PoE Out: 48V Pass-Through (Pins 1, 2+; 3, 6-)
• Maximum Power Consumption: 10W or 22W (with PoE Passthrough)
• Maximum TX Power: 22 dBm
• Antennas: (1) Dual-Band Antenna, 2.4 Ghz: 5 dBi, 5 GHz: 6.5 dBi
• Wi-Fi Standards: 802.11 a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise, (WPA/WPA2, TKIP/AES)
• BSSID: Up to 8 per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 250+
