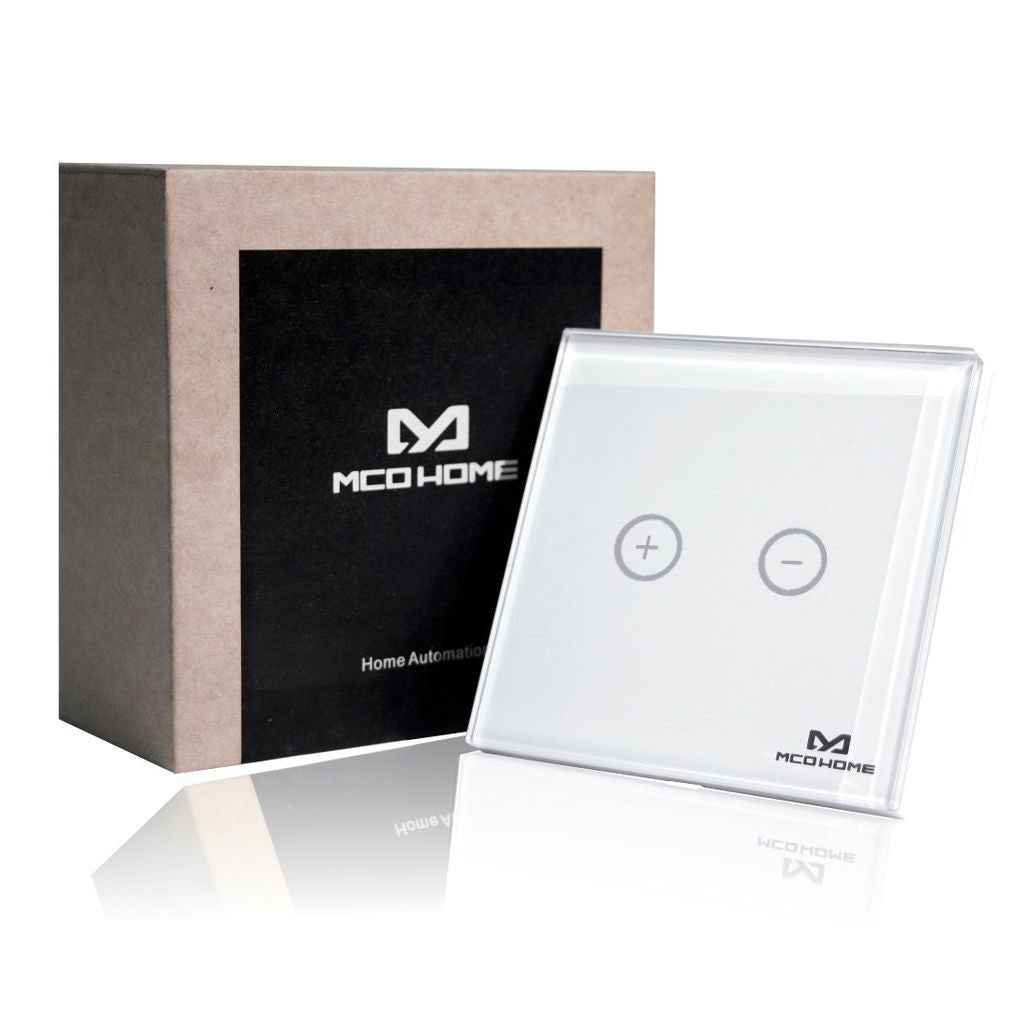

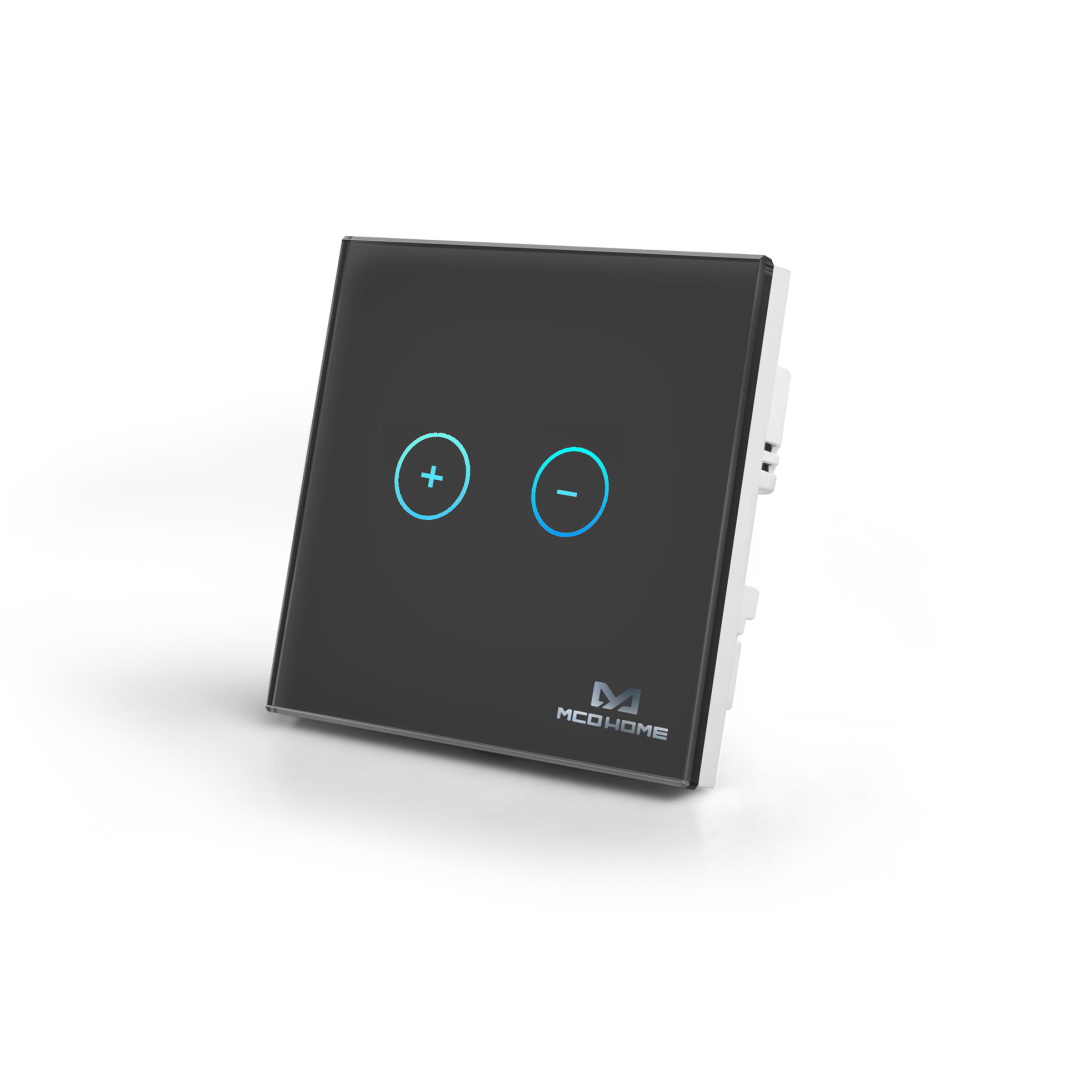

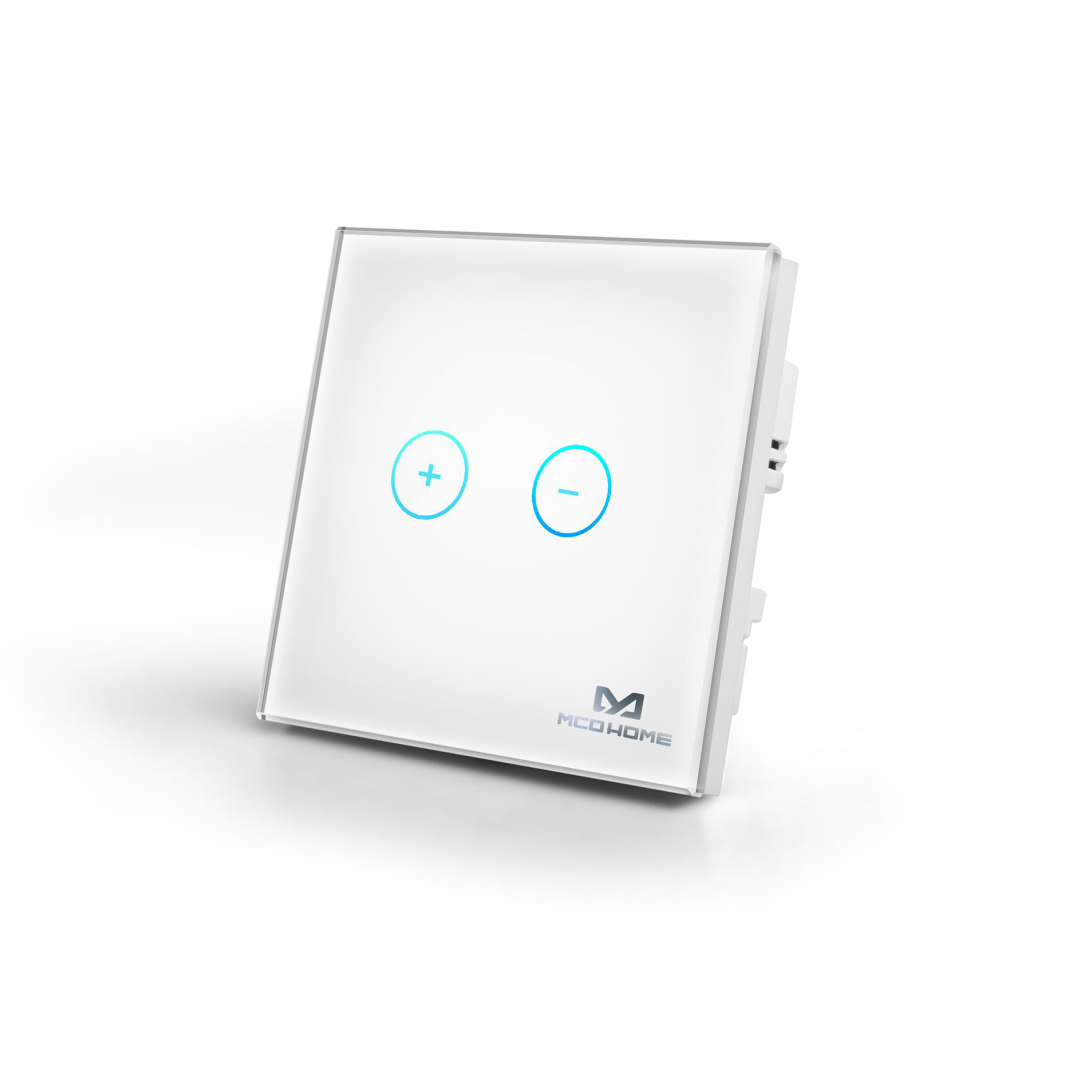

MCO Home Touch Panel Dimmer

Description

The MCO Home Touch Panel Dimmer Gen5 is a dimmer with 2 directional touch button for UK standard wall boxes. The dimmer can be controlled both with the touch on the glass surface and via Z-Wave commands.

The dimmer can switch 1 loads with up to 200 watts. The wall switch can be easily connected to an electrical load without installing a flush mounted module separately.

With the MCO Home Touch Panel Dimmer, you can replace any dimmer insert or dimmer switch. The wall dimmer can be mounted on any flush box and is made for UK wall boxes.

With the stylish glass wall dimmers by MCO Home, you can easily integrate your already installed lights into your home automation network. Without installing any new cable, you can switch your lighting as usual via wall switch – but thanks to Z-Wave technology also via remote control, smartphone or sensor-controlled automation.

Features

• Wall dimmer that handles max load of 1A each
• Supported Load types: Incandescent Dimmable, LED Dimmable
• Flush-mounted in 86 x 86mm square UK junction box.
• Stylish glass touch dimmer (two buttons) with integrated LED
• Ready-to-fit, incl. glass frame to replace complete wall dimmer
• For 3-wire systems, neutral needed
• Wireless Technology: Z-Wave
• Dimensions: 86x86x39 mm
• Power supply: AC220V, 50Hz
• IP Class: IP 20

Manuals

Z-Wave MCO Home Touch Panel Dimmer 310 Series User Manual (Size: 382 KB)
