Z-Wave.Me UZB

Description

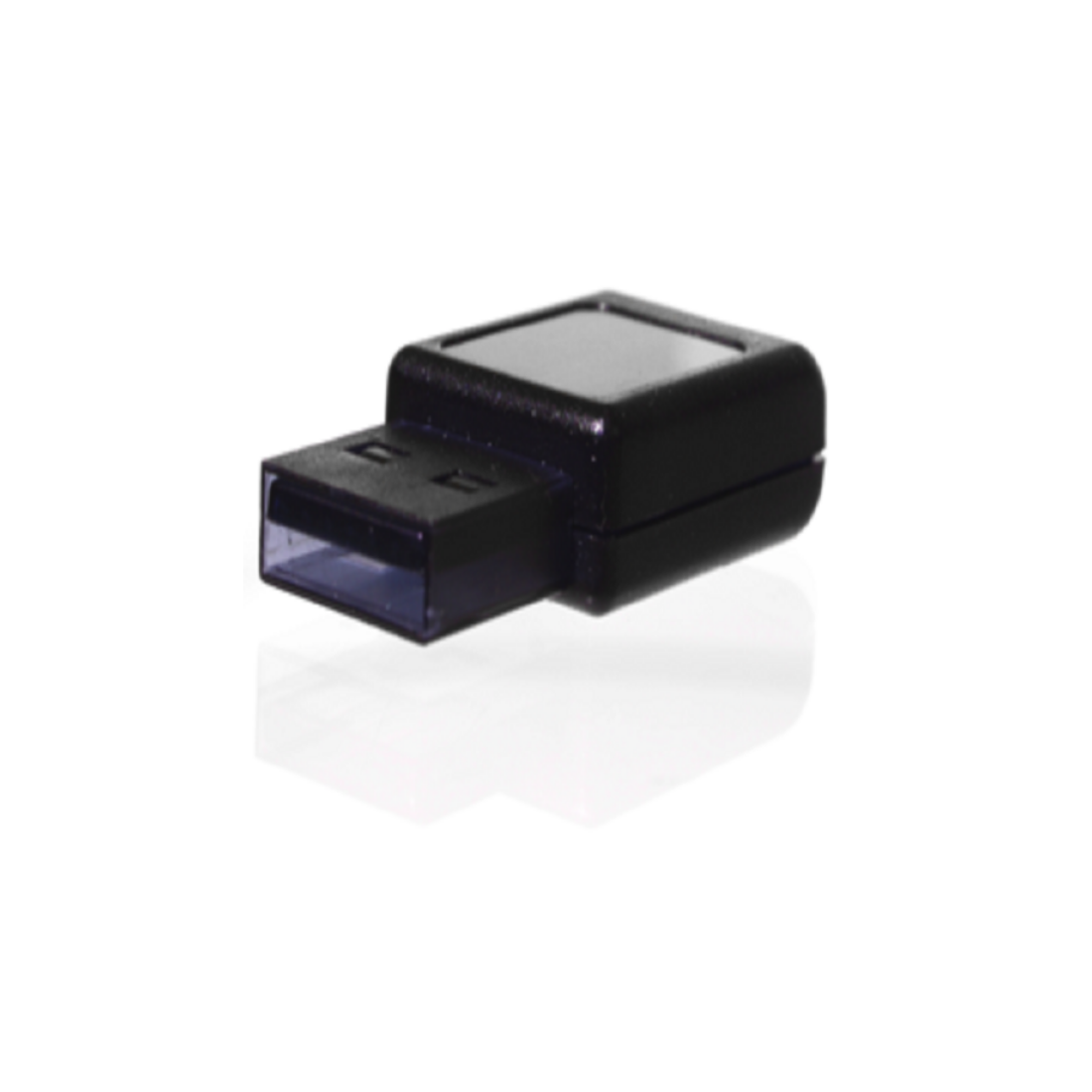

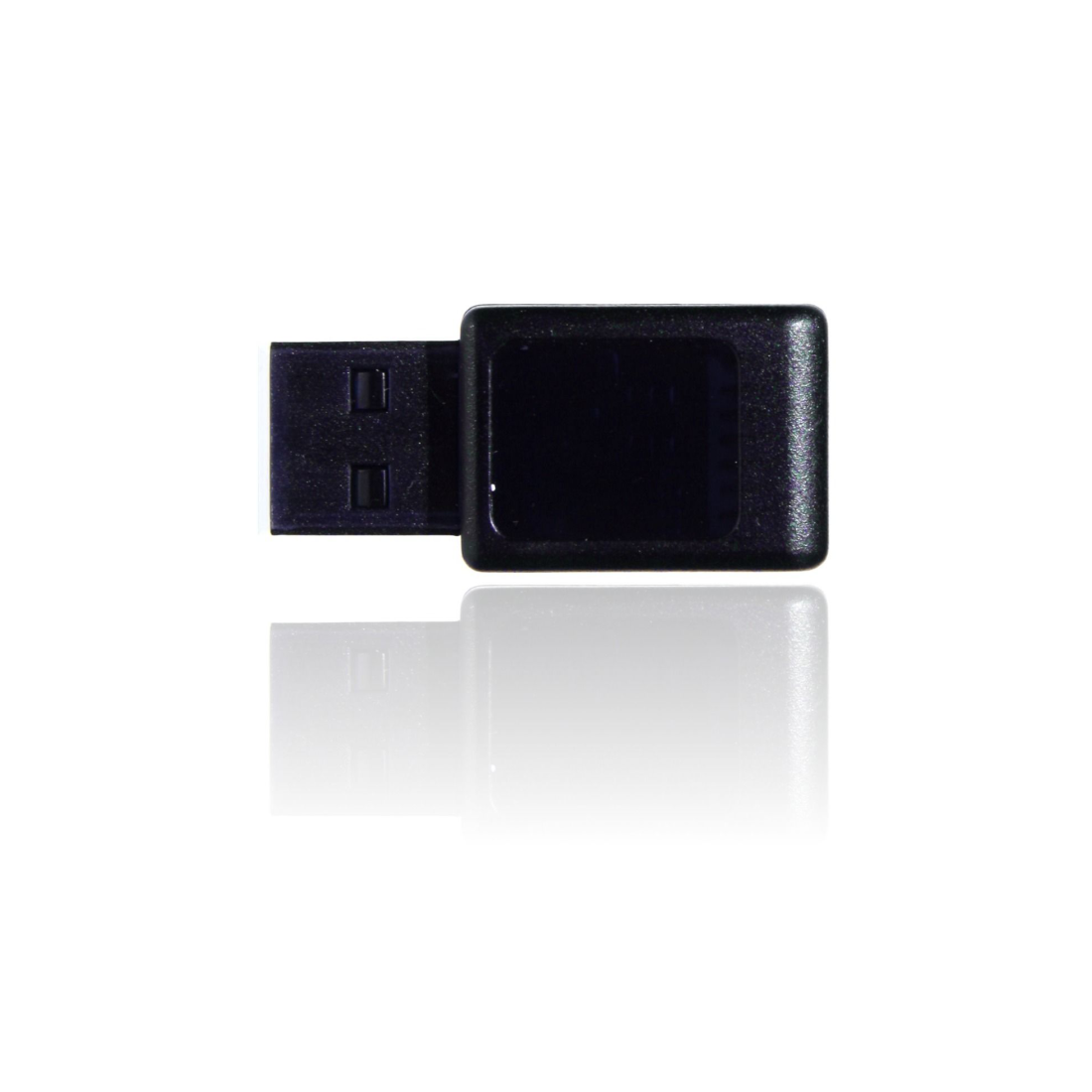

This USB Stick connects a PC or any other computing platform with USB interface to a wireless Z-Wave network. A controller software compatible to the Sigma Designs Serial API is required to use the functions of the device. This software plus this UZB realize a static controller to manage and use Z-Wave devices of various vendors. This stick works with all certified Z-Wave devices regardless of its vendor or date of origin. The Sigma Designs Serial API specification is available to all owners of a Sigma Designs Z-Wave SDK.

The device implements a virtual serial interface used by the Z-Wave application. Linux and Mac OSX has a built in device driver for the stick and will create a new device named like /dev/cu.usbmodemfa131 (OSX) or /dev/ttyACM0 (Linux). Windows enumerates a new COM device but may require a device driver uzb.inf available below.

Compared to the standard firmware design used by almost all Z-Wave USB Sticks and other Z-Wave Host Interface hardware, the UZB firmware offers several extensions and enhancements:

• Backup and recovery function including network topology
• Optimized transmitting queue handling to speed up transmitting process
• Firmware update from the OS level in the field
• Trusted Platform module applying strong encryption
• Extended Wakeup Notification
• Handling to extend battery life time of battery operated devices in the network

The UZB comes with two versions: UZB1 is the plain stick without any additional software license. It can be used with any third party Z-Wave controller software. UZBWAY is the combination of the UZB stick plus a license key for the Z-Way controller software. Z-Way will always require a Z-Wave.Me hardware to run, either a UZB (with license) or a Razberry board.
