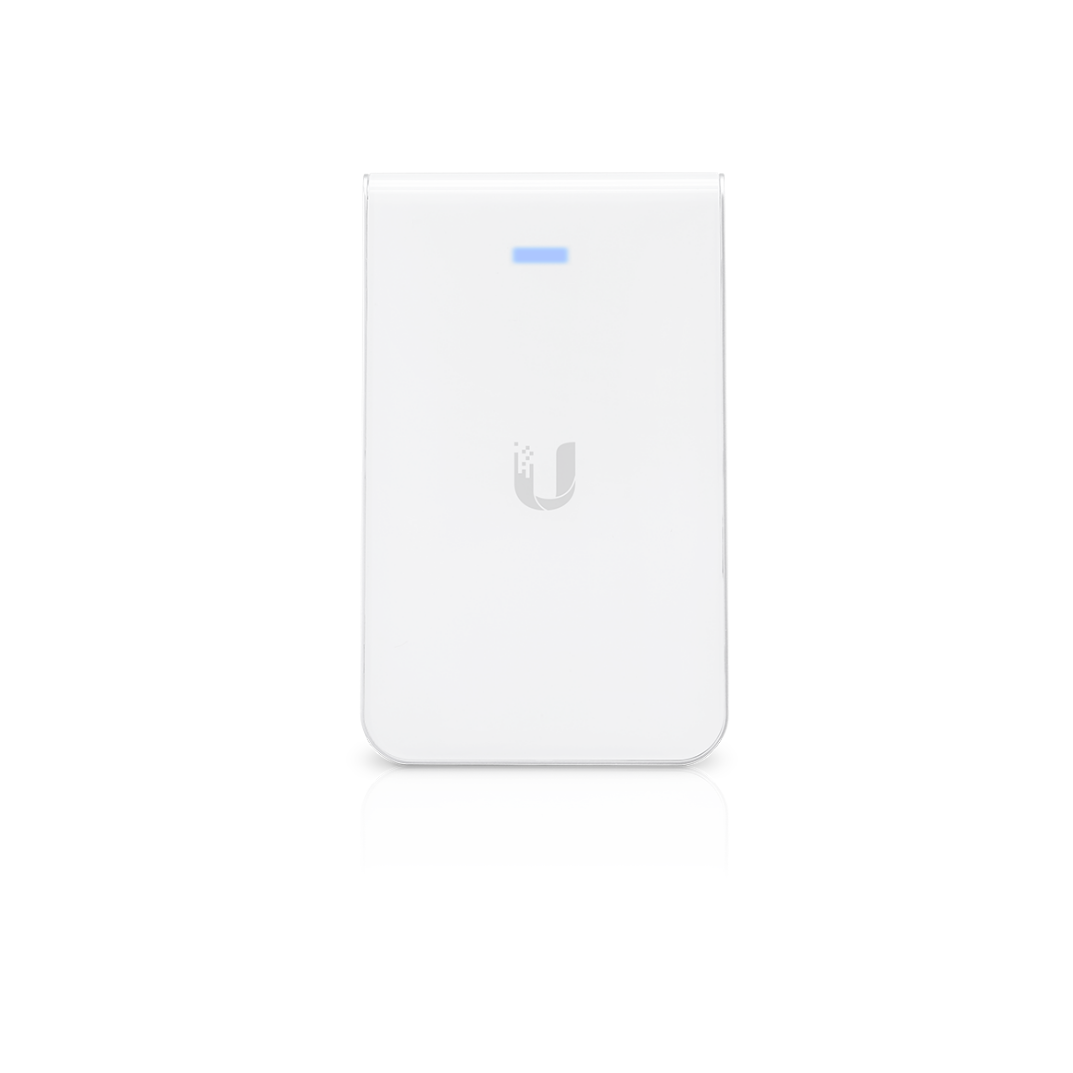

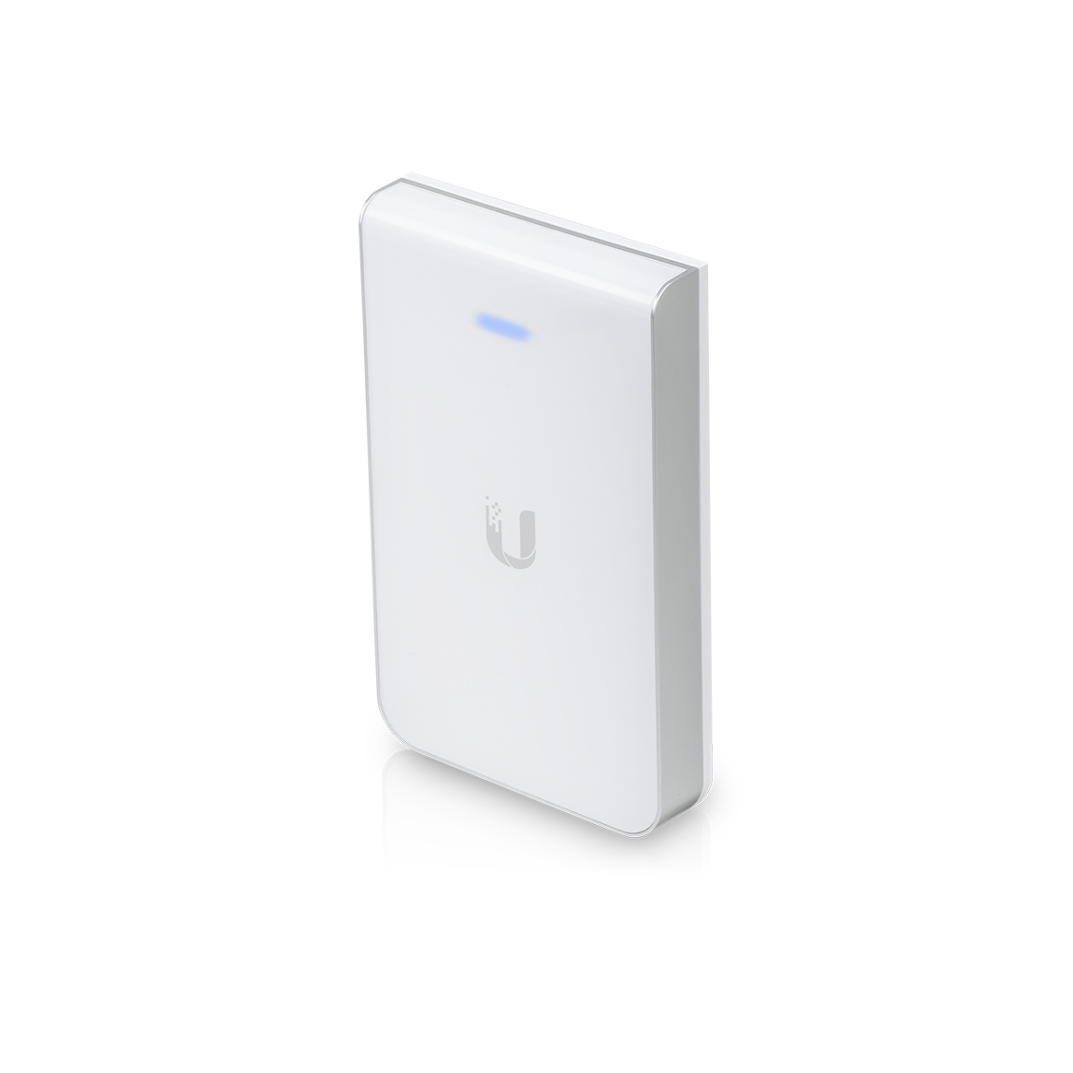

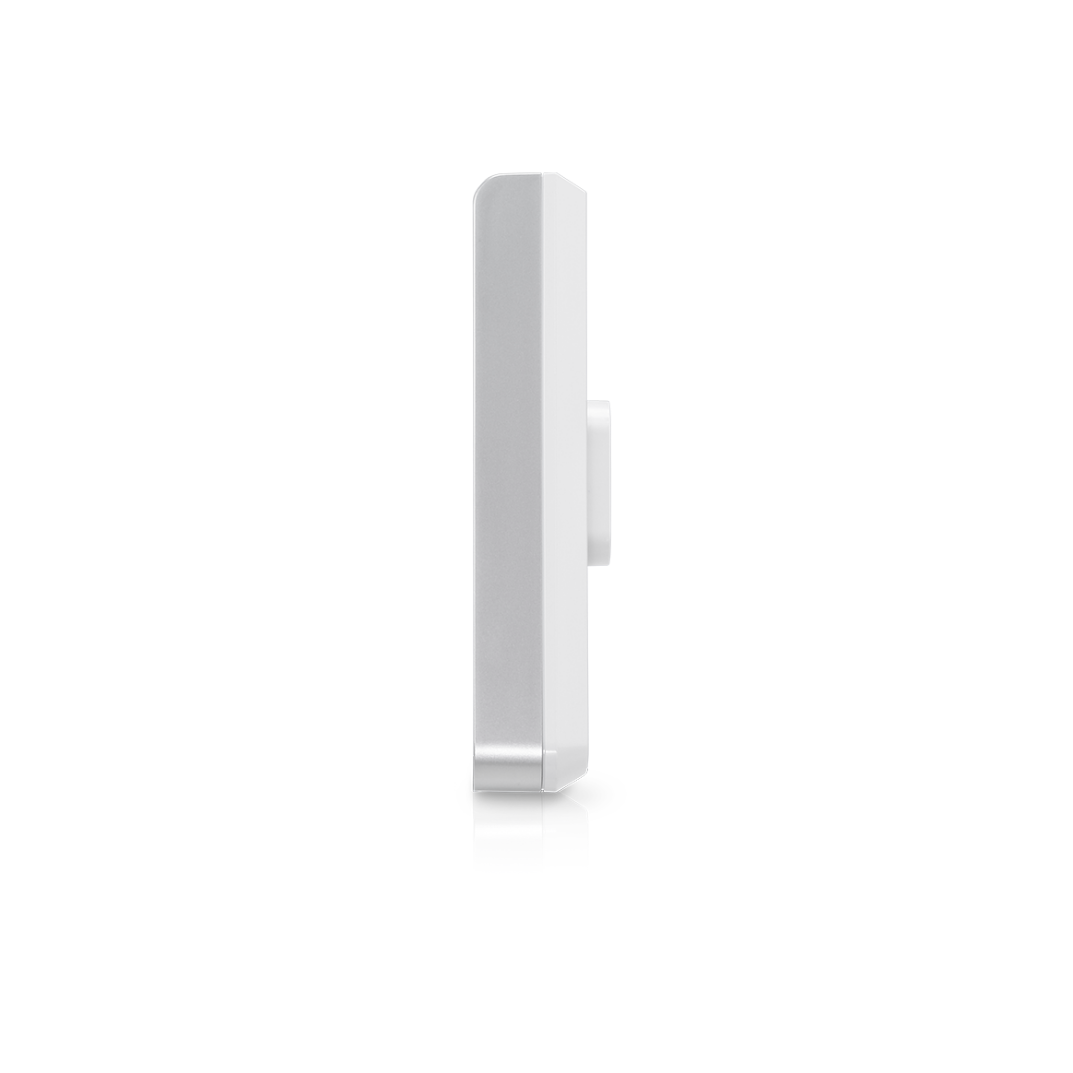

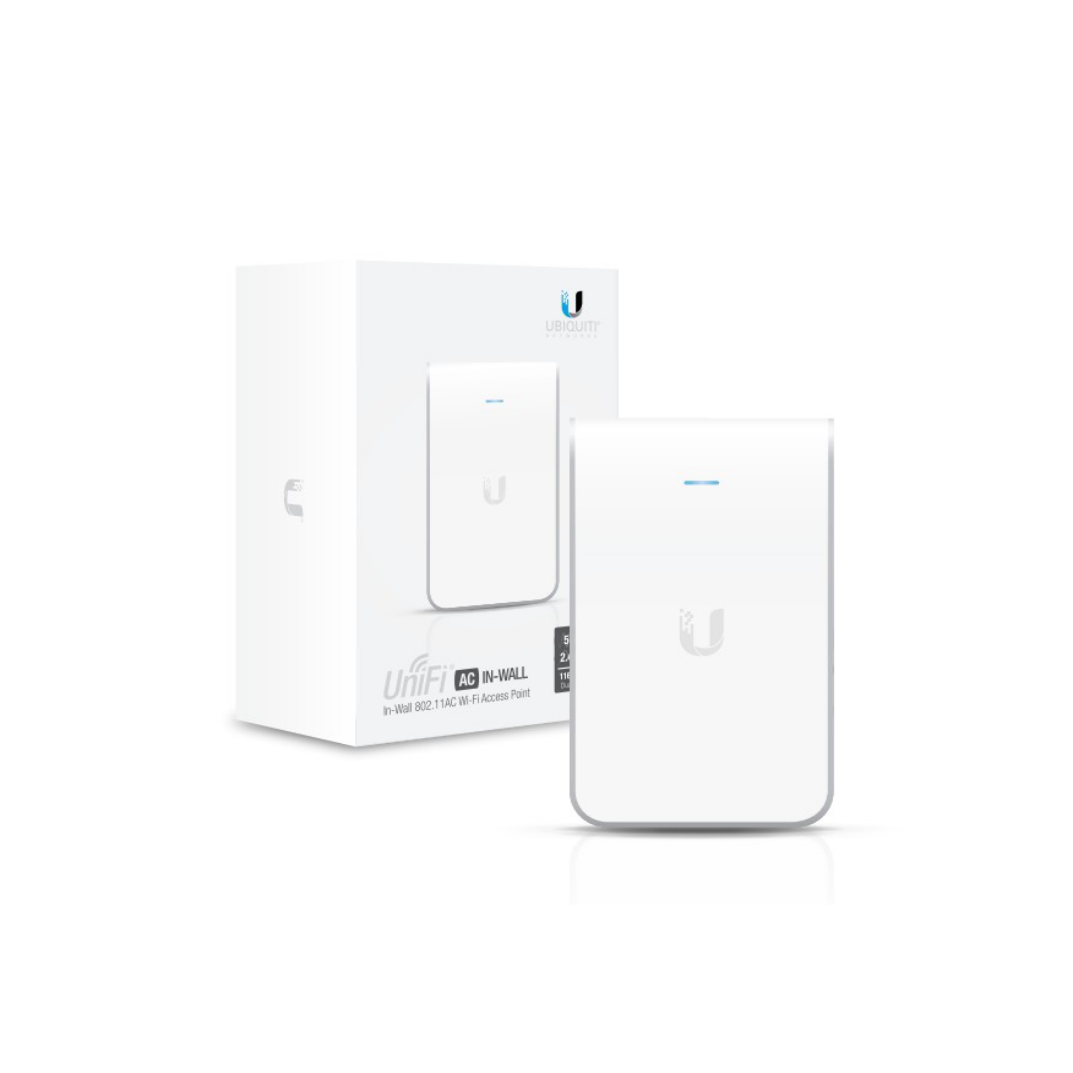

UniFi® Access Point AC In-Wall

Description

In–Wall 802.11ac Wi–Fi Access Point

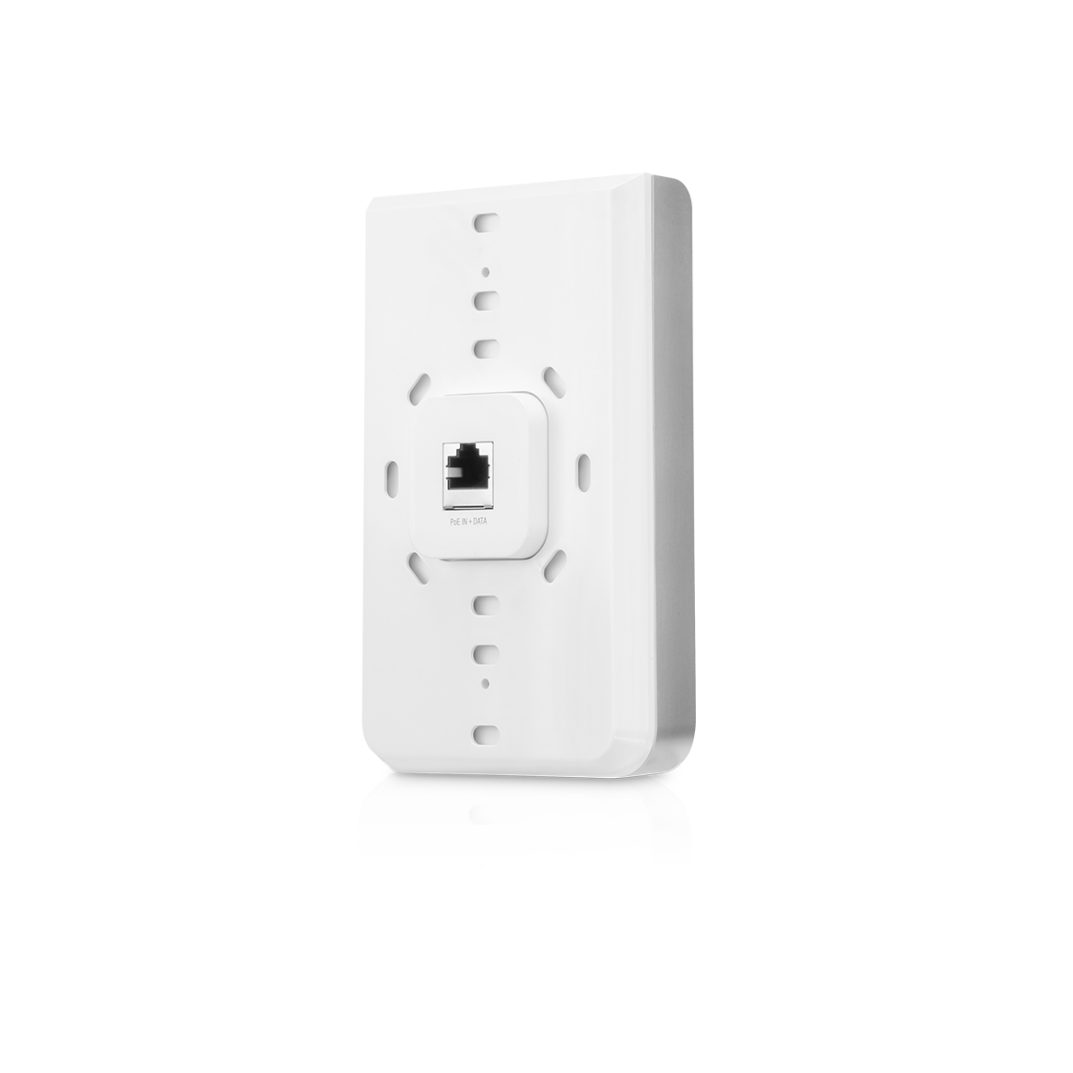

Ideal for new or retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports. One of the ports provides PoE for powering and connecting an 802.3af device to the network. The UniFi AC In-Wall is capable of wireless speeds of up to 1167 Mbps with a range of up to 100 meters.

The Power of PoE

Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series. Requires Cat5e or higher

Versatile Data and PoE Output

An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source. Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.

Simple and Scalable Device Management

The UniFi® Controller provides a graphical user interface for easy configuration and monitoring of the UniFi Switch and other UniFi devices.

Model Comparison

Specifications

• Dimensions: 139.7 x 86.7 x 25.75 mm
• Weight: 200g

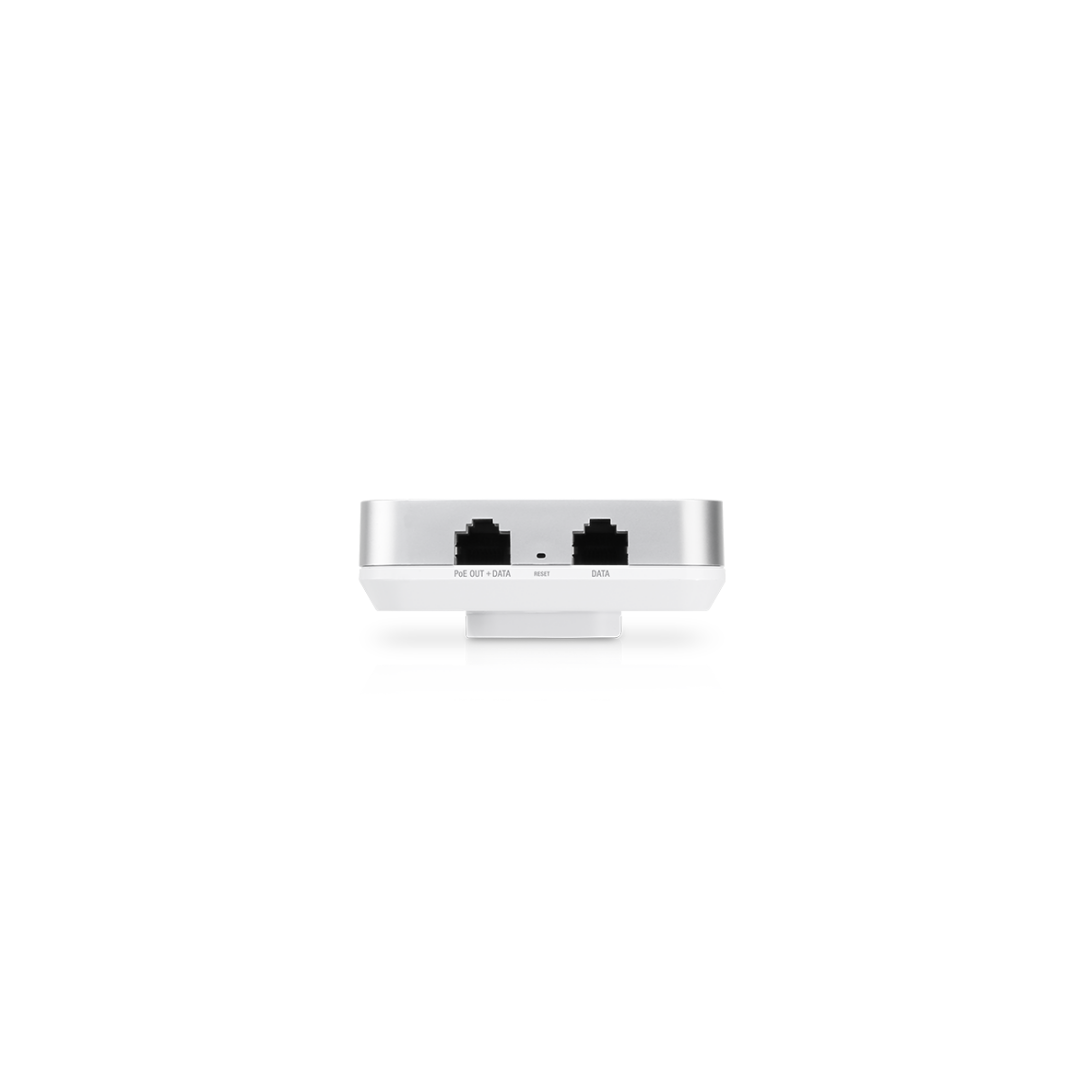

• Networking Interface: (3) 10/100/1000 Ethernet Ports
• Buttons: Reset
• Power Method: 802.3af PoE+ Supported
• Power Supply: UniFi PoE Switch (Not included)
• Power Save: Supported
• PoE Out: 48V Pass-Through (Pins 1, 2+; 3, 6-)
• Maximum Power Consumption: 7W or 19W (with PoE Passthrough)
• Maximum TX Power: 20 dBm
• Antennas: (1) Dual-Band Antenna, 2.4 Ghz: 1 dBi, 5 GHz: 2 dBi
• Wi-Fi Standards: 802.11 a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise, (WPA/WPA2, TKIP/AES)
• BSSID: Up to 8 per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 250+

Manuals

Unifi AP AC In-Wall Quick Start Guide (Size: 2.45 MB)

Unifi AP AC Datasheet (Size: 9.21 MB)
