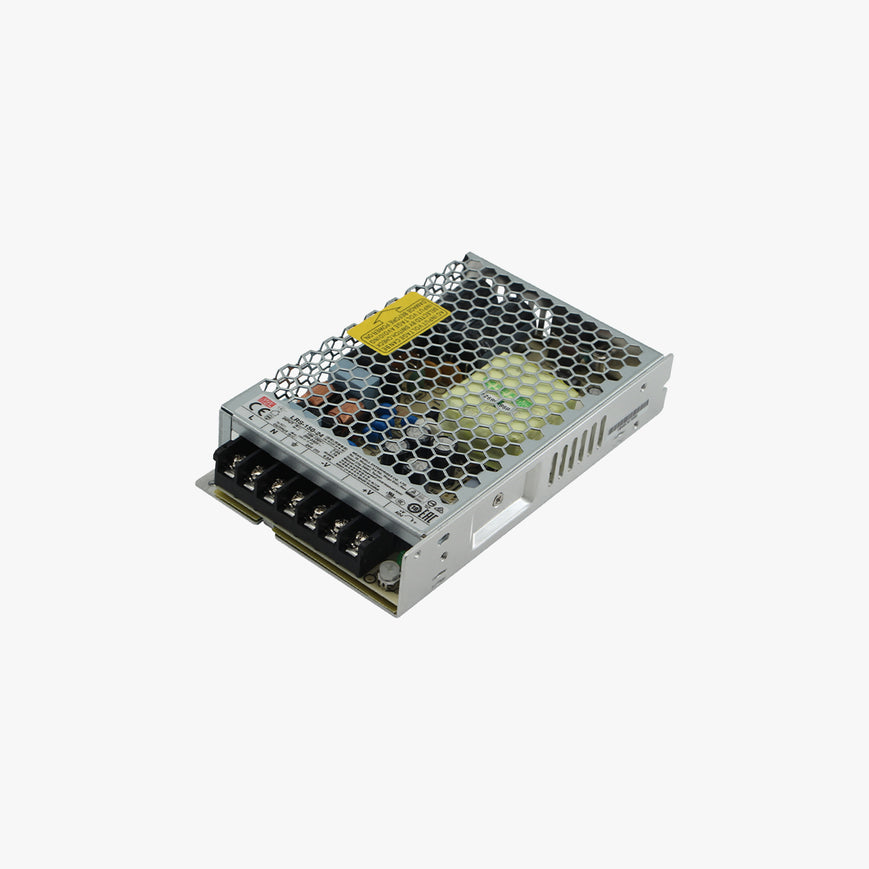

NEAR Meanwell 24V Transformer

NEAR Meanwell 24V Transformer

Regular price $38.00 SGD
Regular price Sale price $38.00 SGD
Sale Sold out
Tax included.
Size

Description

For Use with Selected LED strip Only

Choosing the right transformer

  1. Ensure that your LED strip and the transformer use the same voltage.
    (24V in this case)
  2. Calculate total wattage: Effective Wattage x Length
  3. Round up & select the power supply with a higher wattage.

Example
2m of Near Max Bright (25W Effective Wattage) = 50W.
Do not select a transformer that is lower than or at the same wattage as required by the LED strip system, pick the next available higher-wattage option.

Note

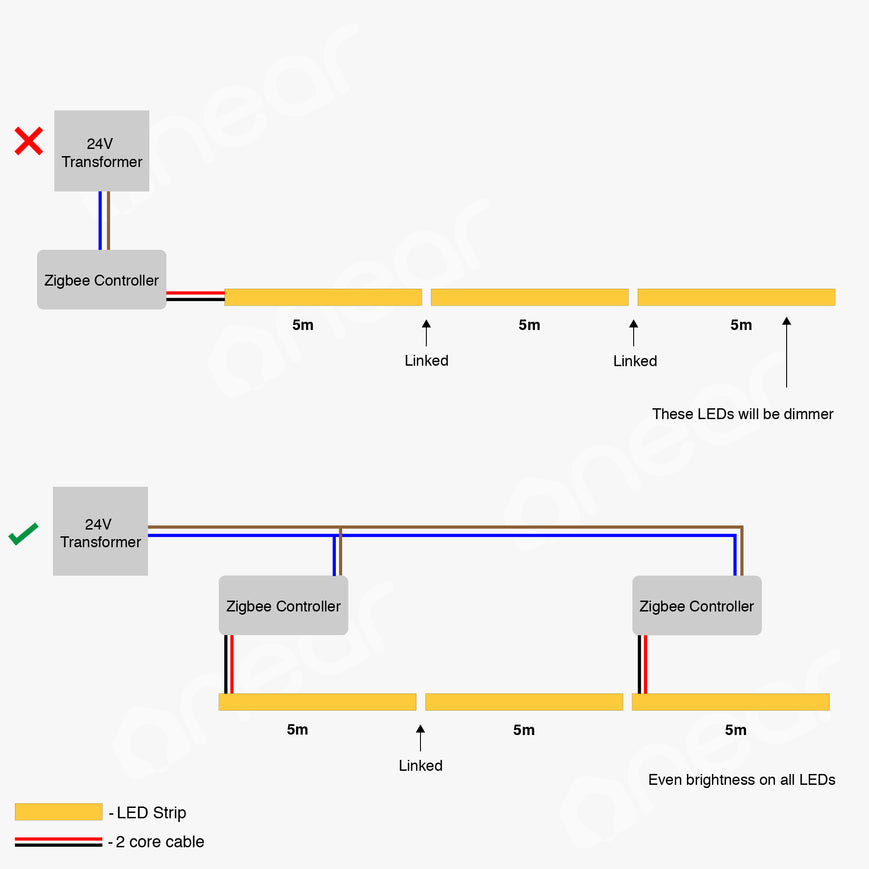

We recommend not exceeding 10m of LED strip in a single continuous line as it might cause a drop in brightness further down the LED strip and a reduction in lifespan.

50W - up to 3m
100W - up to 6m
150W - up to 9m
200W - 12m (not recommended to exceed 10m). recommend using 200W for exactly 10m



Dimensions (mm)
50W: 99 x 82 x 30
100W: 129 x 97 x 30
150W: 159 x 97 x 30
200W: 215 x 115 x 30

Voltage: DC 24V
IP Rating: IP20 (Indoor-use only)



2 years Local Carry-In Warranty
