AZ E-Lite

LED Round 6" Downlights (16W Dimmable) AZ E-Lite

LED Round 6" Downlights (16W Dimmable) AZ E-Lite

Regular price $48.00 SGD
Regular price $60.00 SGD Sale price $48.00 SGD
Sale Sold out
Tax included.
Colour Temperature

AZ E-lite AZSENCE

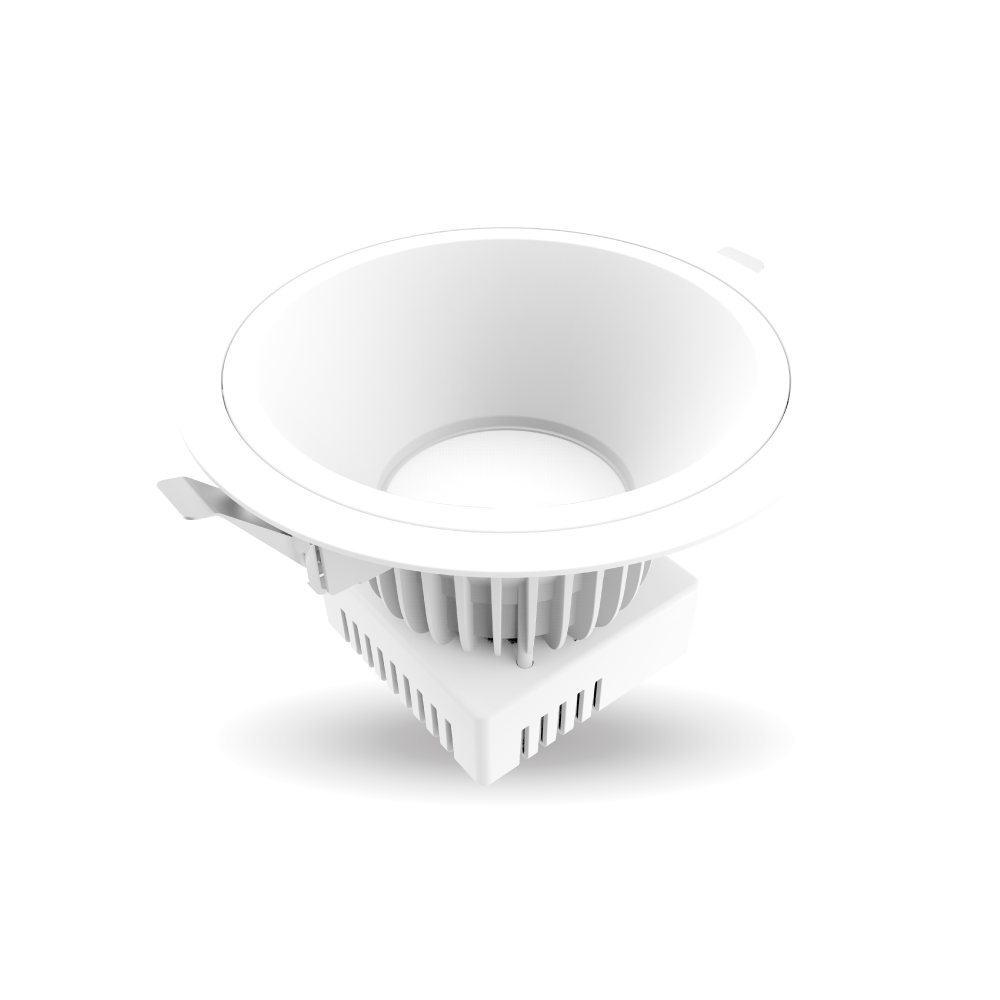

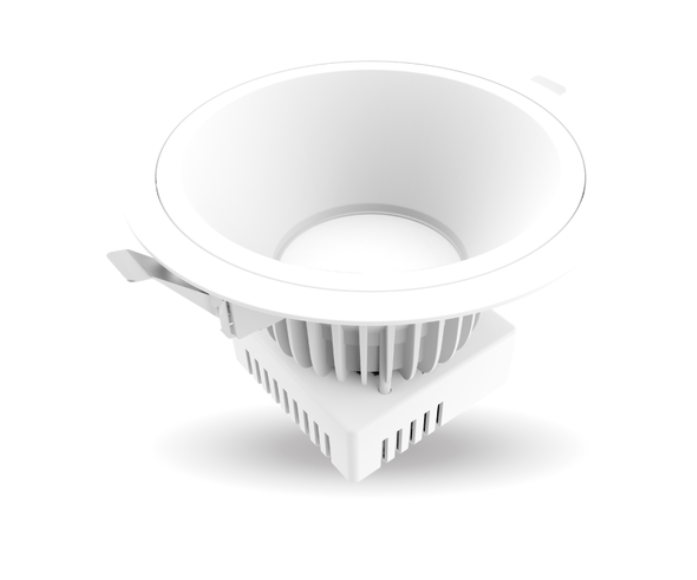

6-inch LED recessed downlights with integrated driver, are excellent alternatives for traditional PLC, PLT and halogen downlights. The LDRA-LG model is designed for visual comfort with glare reducing housing.



Ideal for Bathroom ceiling (Zone 2 + 3) with high humidity



Product Overview

Total Performance
  • High efficiency and uniform illumination

  • No excessive heat output from LED
  • Energy savings
  • Power factor >0.9
  • The LDRA-LG model is designed for visual comfort with glare reducing housing
Direct Replacement
  • Easy to install in new or retrofit installations

  • Same cutting hole size as traditional fitting
  • Fitting complete with flex and plug attached
Quality Finishing
  • Powder-coated white with PMMA diffuser
  • IP40 rating / IP44 rating (Trim only)
  • Zero glass, mercury, toxic material
Applications
  • Offices, shopping malls, hospitals and commercial areas
  • Elegant lighting in reception areas, lobbies, corridors and hotel rooms
  • Effective lighting in kitchens, bathrooms and living rooms
Beam Angle
Wide beam angle enhances light distribution providing uniform lighting for a larger area compared to conventional downlight.



Dimmable
The dimming capability of LDR / LDS series can bring lumen output down to 30%, providing inconspicuous ambient lighting which is ideal for a comfortable and relaxing atmosphere.



    Specifications


    Electrical Power Consumption 16W
    Input Voltage 220-240 Vac
    Power Factor 0.9
    Luminous Flux 1400 lm
    1600 lm
    1600 lm
    Operating Frequency 50/60Hz
    Colour Rendering Index 85
    Colour Temperature 3000K/4000K/6500K
    Lifespan 35,000 Hrs
    IP Rating IP44 (Trim Only)
    Base Material Aluminium With White Matt Finish
    Diffuser PMMA
    UGR <19
    Dimming Control 0 - 10 V
    Size 109.6 (H) x ø184.9 (Diameter) mm
    Cut-Out Size: ø175mm
    Weight 40g
    Compliance CE, RoHS
    Replacement 2 x 13 W PLC
    1 x 26W PLC


    For Purchase in Bulk (10 pieces & beyond), kindly contact us for preferential price (terms & conditions applies)

    Specifications

    Warranty

    24 months warranty (Carry-in), supported locally
