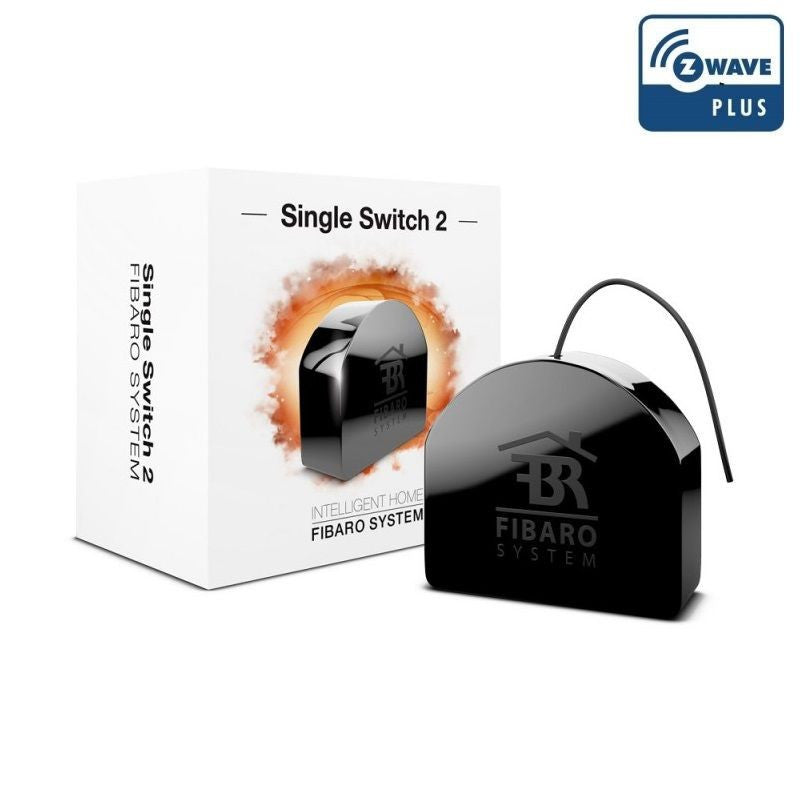

FIBARO Single Switch 2

Description

The new Relay Switch 2 available as a Single and Double switch was designed to activate and deactivate electrical devices. Thanks to its small size it can be mounted in junction boxes or inside device casings. The module is controlled either through the Z-Wave network or a simple switch. Power and energy usage measurement feature allows you to monitor and lower your utility bills. Connect your FIBARO Switch 2 to the system and other devices to enjoy the almost endless possibilities!

Features

• Built-in scene activation mechanism
• Security and notification communication classes
• Configuration menu with a diode
• Latest generation Z-Wave 500 series chip
• Z-Wave Plus protocol
• Energy and power measurement of connected devices
• Supports secure mode (Z-Wave Network Security) encrypted with AES-128

• A complex system of control for each channel
• A complex system of scene activation for each channel (scene management)
• 1 to 3 presses and holding the key pressed down can be mapped to four different actions
• Very accurate energy measurement +/- 1 % for power above 5W
• Smart notifications
• Sockets with more convenient connectors
• User-friendly configuration menu
• Z-Wave network coverage tester
• Software updates*

Specifications

• Radio protocol: Z-Wave+
• Wireless: Z-Wave (868.42MHz)
• Radio signal power: up to 1mW
• Voltage: 110 - 240V AC
• Maximum load: 8A (Resistive)
• Power Consumption: < 0.8W
• Range: up to 50m (outdoors) and 40m (indoors)
• Dimensions (LxWxH): 42.5 x 38.25 x 20.3mm
• Operational temperature: 0-35°C
• Scene management: 1 to 3 presses and holding the key pressed down can be mapped to four different actions
• System of control for each channel: Standard control, Delayed device activation, Delayed device deactivation, Auto on and auto off mode with additional options
